Torque Testers For Electric Screwdrivers
Code: IST-CD Series
Compatible with all electric screwdrivers
Widely used in manufacturing sectors such as 3C, new energy, automotive parts and etc.
Compact in size, extremely easy to integrate, and designed specifically for automated assembly lines
High measurement accuracy and excellent repeatability
Set upper and lower tolerance limits and output pass/fail signals via I/O ports which can be connected to external alarm indicator or PLC
Support multiple standard communication protocols and compatible with mainstream communication ports such as RS485 and RS232, provide output of data such as real-time torque and peak torque
2.0-inch TFT high-definition color screen
Unit: N.m, mN.m, lbf.in, kgf.cm
Auto-zero and adjustable peak hold time
| Code | Sensor type | Torque testing category | Installation method | With buffer | Maximum range |
|---|---|---|---|---|---|

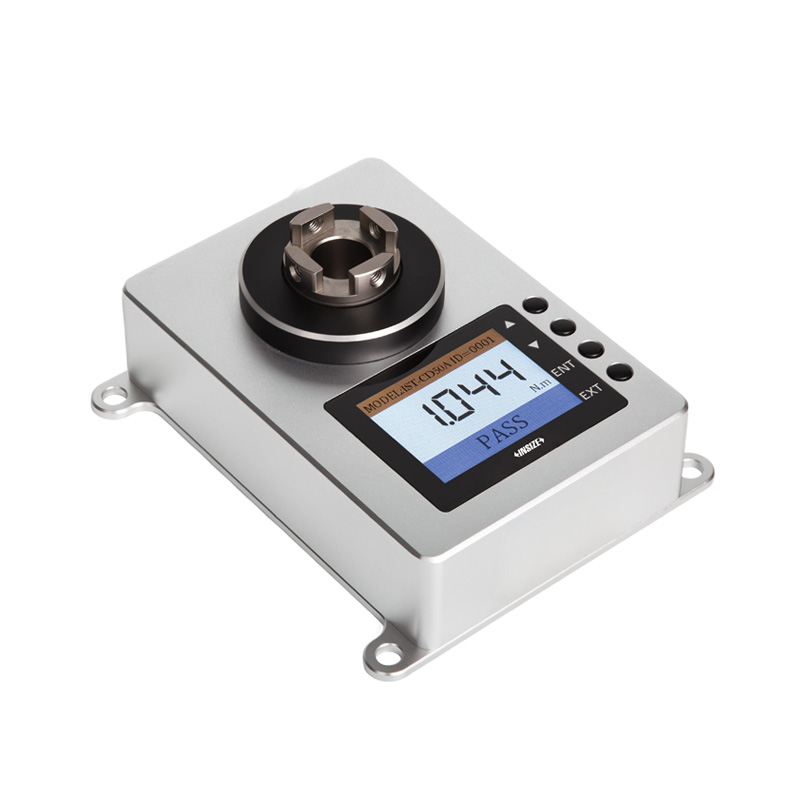

| IST-CD08A | fixed type | dynamic torque | portable installation/mounted on machine | yes | 0.8N.m |
| IST-CD50A | fixed type | dynamic torque | portable installation/mounted on machine | yes | 5N.m |
| IST-CD100A | fixed type | dynamic torque | portable installation/mounted on machine | yes | 10N.m |
| IST-CD02B | fixed type | dynamic torque | portable installation/mounted on machine | yes | 0.2N.m |
| IST-CD08B | fixed type | dynamic torque | portable installation/mounted on machine | yes | 0.8N.m |
| IST-CD50B | fixed type | dynamic torque | portable installation/mounted on machine | yes | 5N.m |
| IST-CD100B | fixed type | dynamic torque | portable installation/mounted on machine | yes | 10N.m |

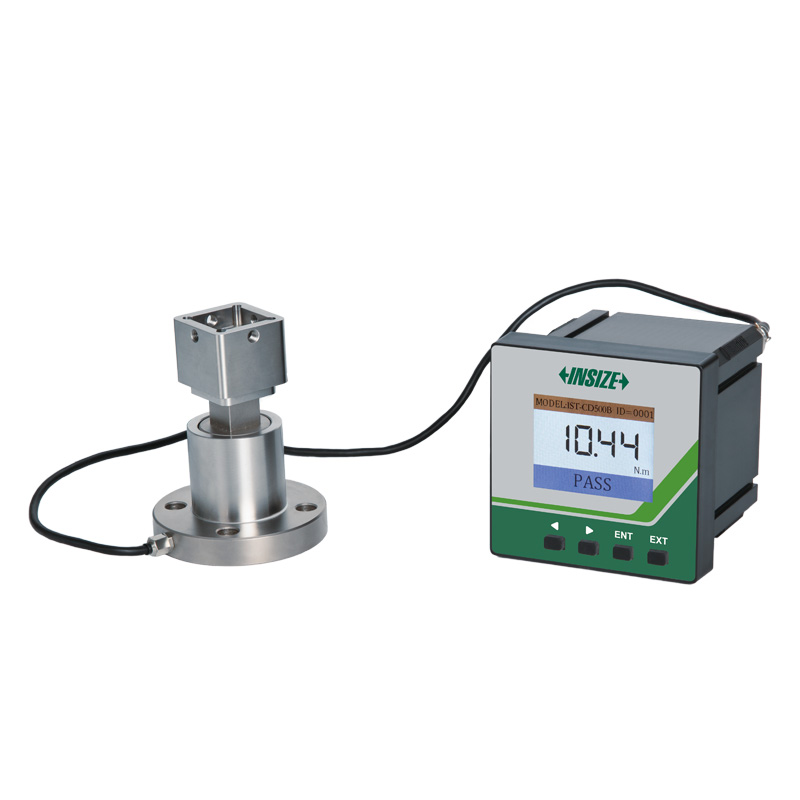

| IST-CD500B | fixed type | dynamic torque | portable installation/mounted on machine | yes | 50N.m |
