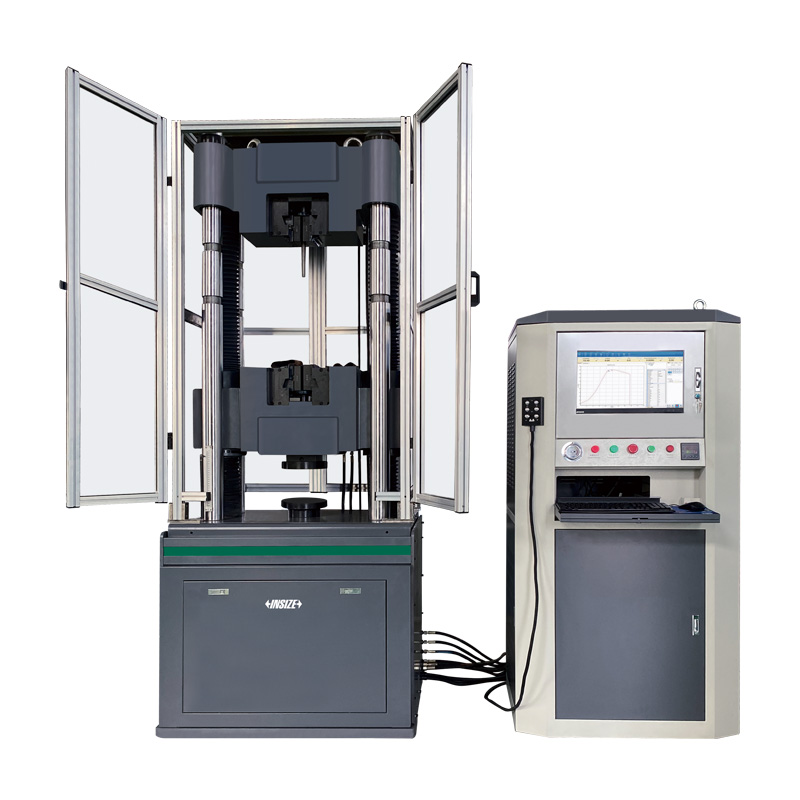

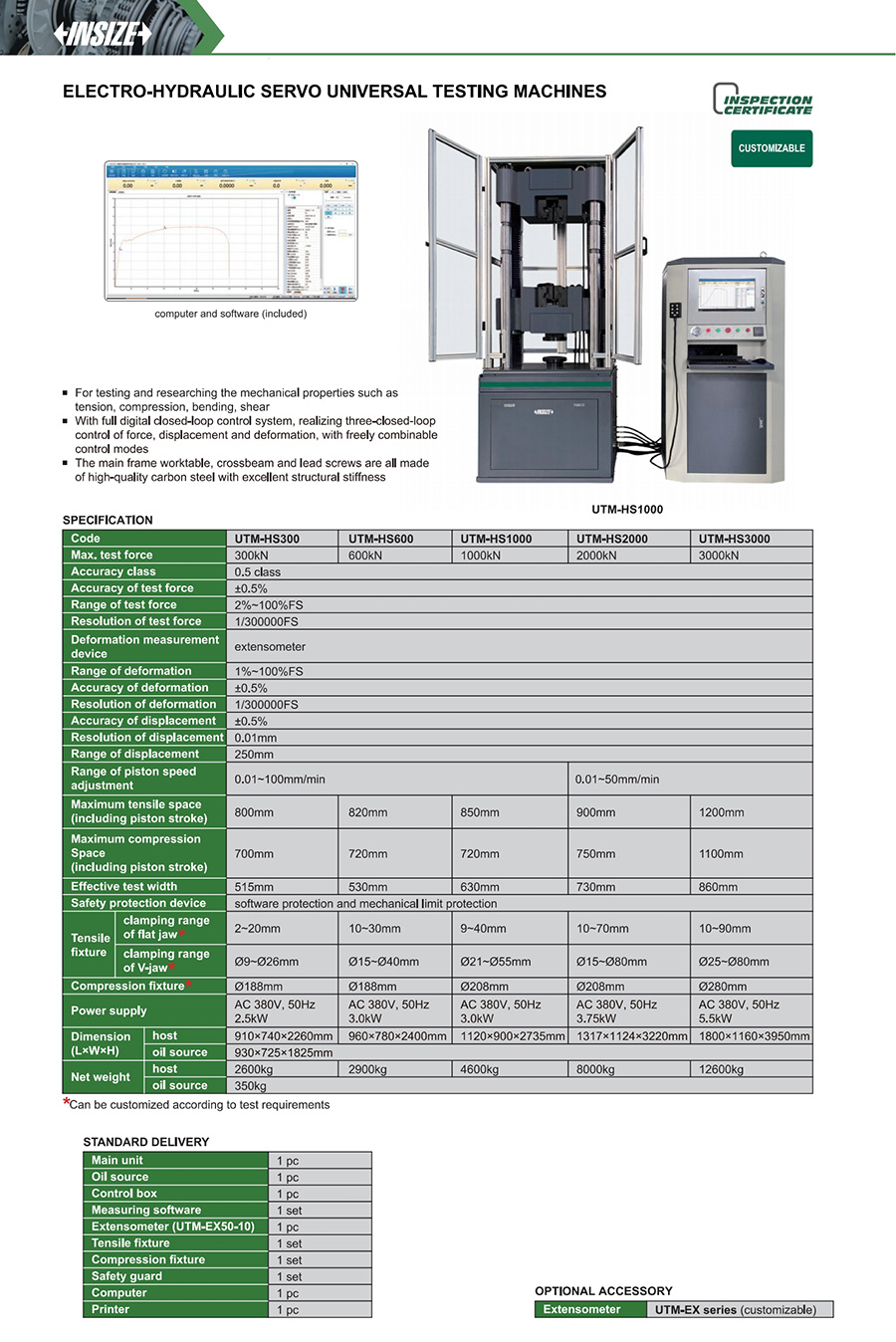

Electro-Hydraulic Servo Universal Testing Machines
Code: UTM-HS Series
For testing and researching the mechanical properties such as tension, compression, bending, shear
With full digital closed-loop control system, realizing three-closed-loop control of force, displacement and deformation, with freely combinable control modes
The main frame worktable, crossbeam and lead screws are all made of high-quality carbon steel with excellent structural stiffness
| Code | Type | Max. test force | Accuracy of test force |
|---|---|---|---|
| UTM-HS300 | hydraulic | 300kN | ±0.5% |
| UTM-HS600 | hydraulic | 600kN | ±0.5% |
| UTM-HS1000 | hydraulic | 1000kN | ±0.5% |
| UTM-HS2000 | hydraulic | 2000kN | ±0.5% |
| UTM-HS3000 | hydraulic | 3000kN | ±0.5% |
