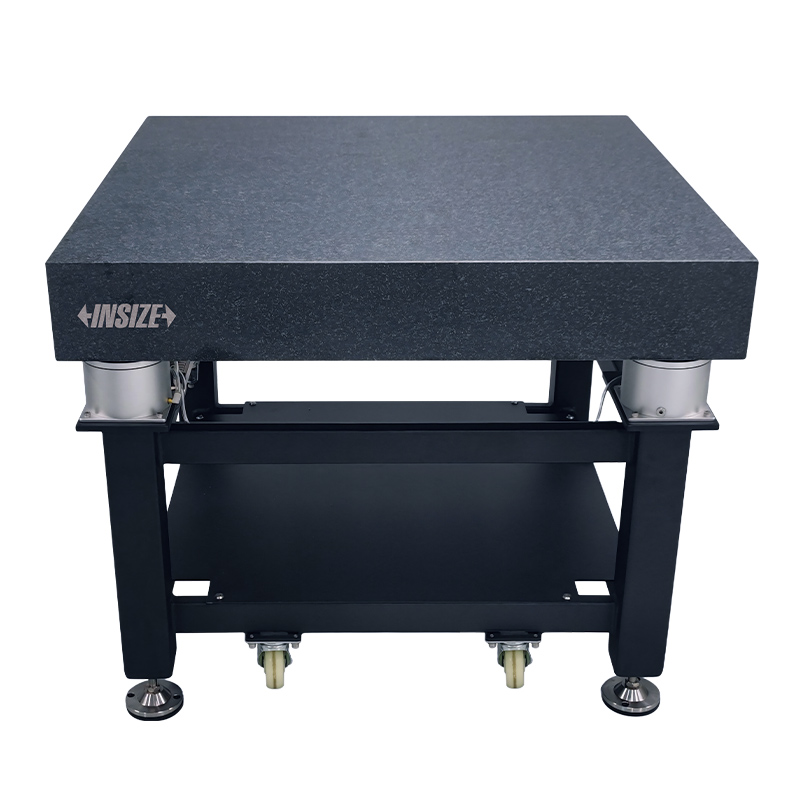

Vibration Isolation Platforms (Advanced Type)
Code: 0792-A
Suitable for ultra-precision machining, precision measurement, optical inspection and other extremely high precision scenarios
Adopting precision air-floating vibration isolation device, it significantly improves the isolation performance for ultra-micro vibration
Automatic level adjustment function
With damping adjustment to suppress resonance
| Code | Dimension (L×W×H) | Material | Max. load |
|---|---|---|---|
| 0792-A86A | 800×600×780mm | marble | 300kg |
| 0792-A86B | 800×600×780mm | honeycomb platen | 300kg |
| 0792-A108A | 1000×800×780mm | marble | 400kg |
| 0792-A108B | 1000×800×780mm | honeycomb platen | 400kg |
| 0792-A1210A | 1200×1000×780mm | marble | 500kg |
| 0792-A1210B | 1200×1000×780mm | honeycomb platen | 500kg |
| 0792-A1610A | 1600×1000×780mm | marble | 900kg |
| 0792-A1610B | 1600×1000×780mm | honeycomb platen | 900kg |
| 0792-A1612A | 1600×1200×780mm | marble | 1500kg |
| 0792-A1612B | 1600×1200×780mm | honeycomb platen | 1500kg |

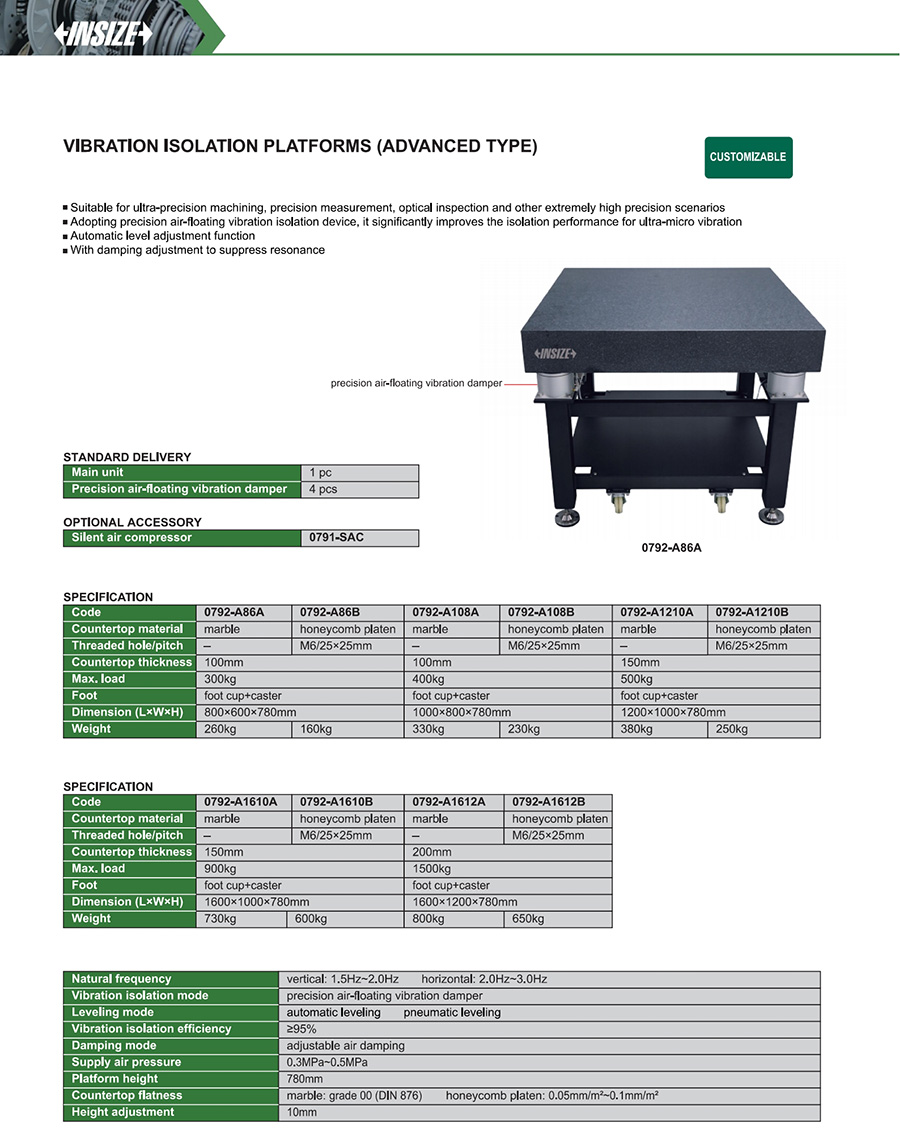

View the complete
