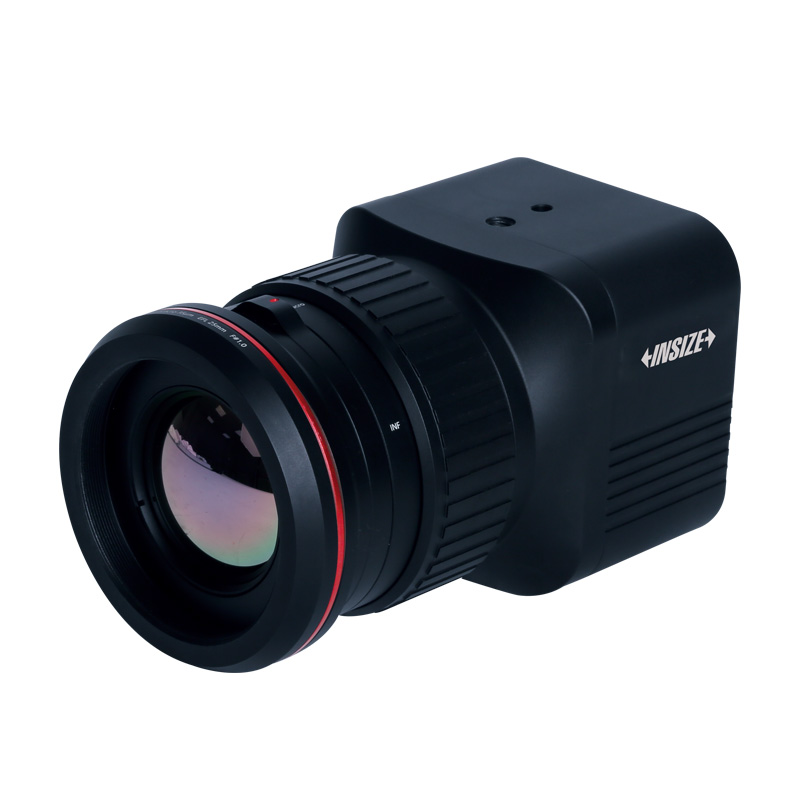

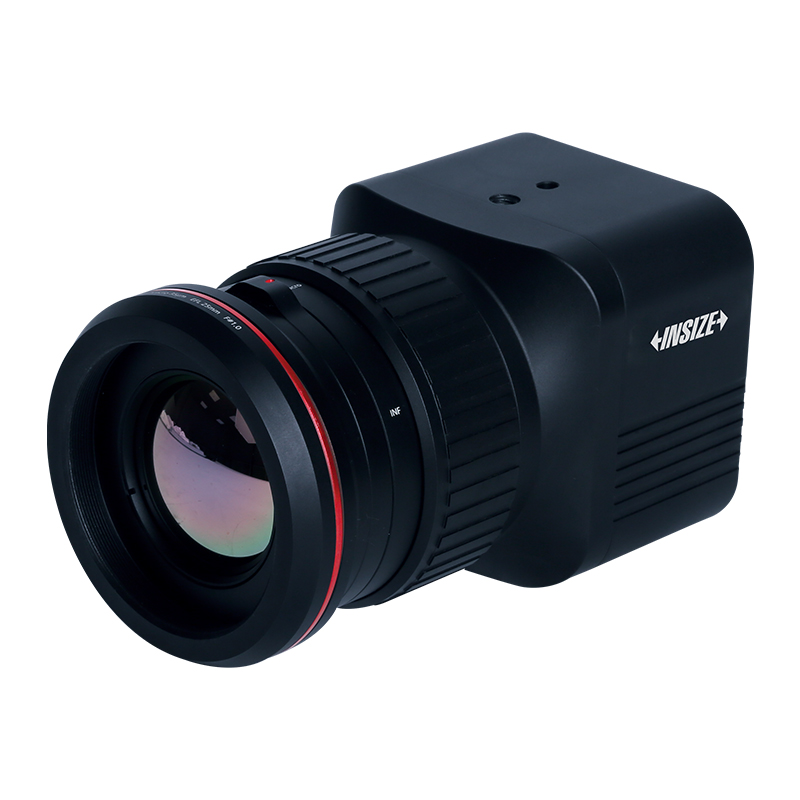

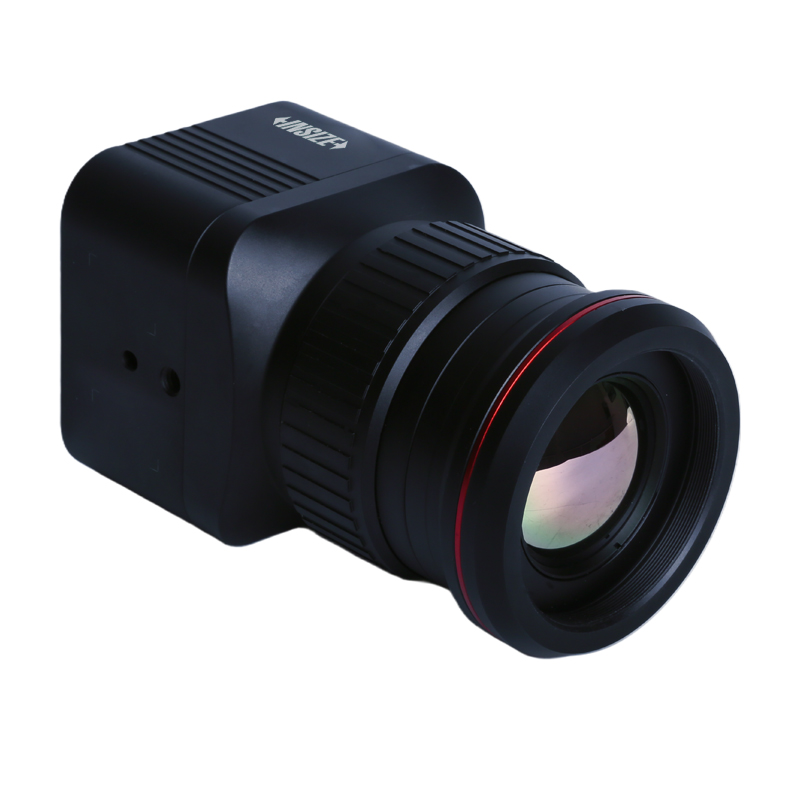

Microscopic Infrared Thermal Imaging Cameras
Code: 0243-HT48/HT640
Suitable for electric power, energy, electronic industry, scientific research, etc.
Equipped with a high-resolution and high-sensitivity infrared detector, ensuring clear imaging with discernible details
Temperature measurement accuracy up to ±1°C or ±1% within the range of 0°C to 150°C
One simple twist to switch between normal mode and macro mode, no lens replacement required

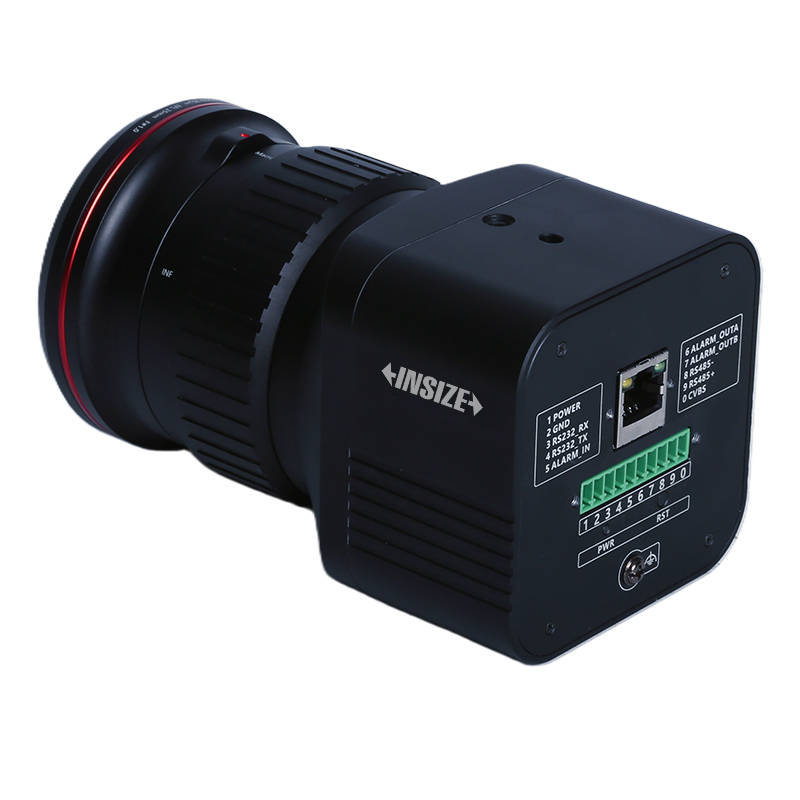

Feature standard mounting interfaces, compact size, and easy installation and deployment
Software is included: support file management, thermal image analysis, report editing, etc.
| Code | Measurement Range | Infrared Resolution | Spatial resolution/IFOV |
|---|---|---|---|
| 0243-HT480 | normal mode: -20°C~150°C, 0°C~650°C; macro mode: -20°C~150°C | 480×360 | 0.48mrad |
| 0243-HT640 | normal mode: -20°C~150°C, 0°C~650°C; macro mode: -20°C~150°C | 640×512 | 0.48mrad |

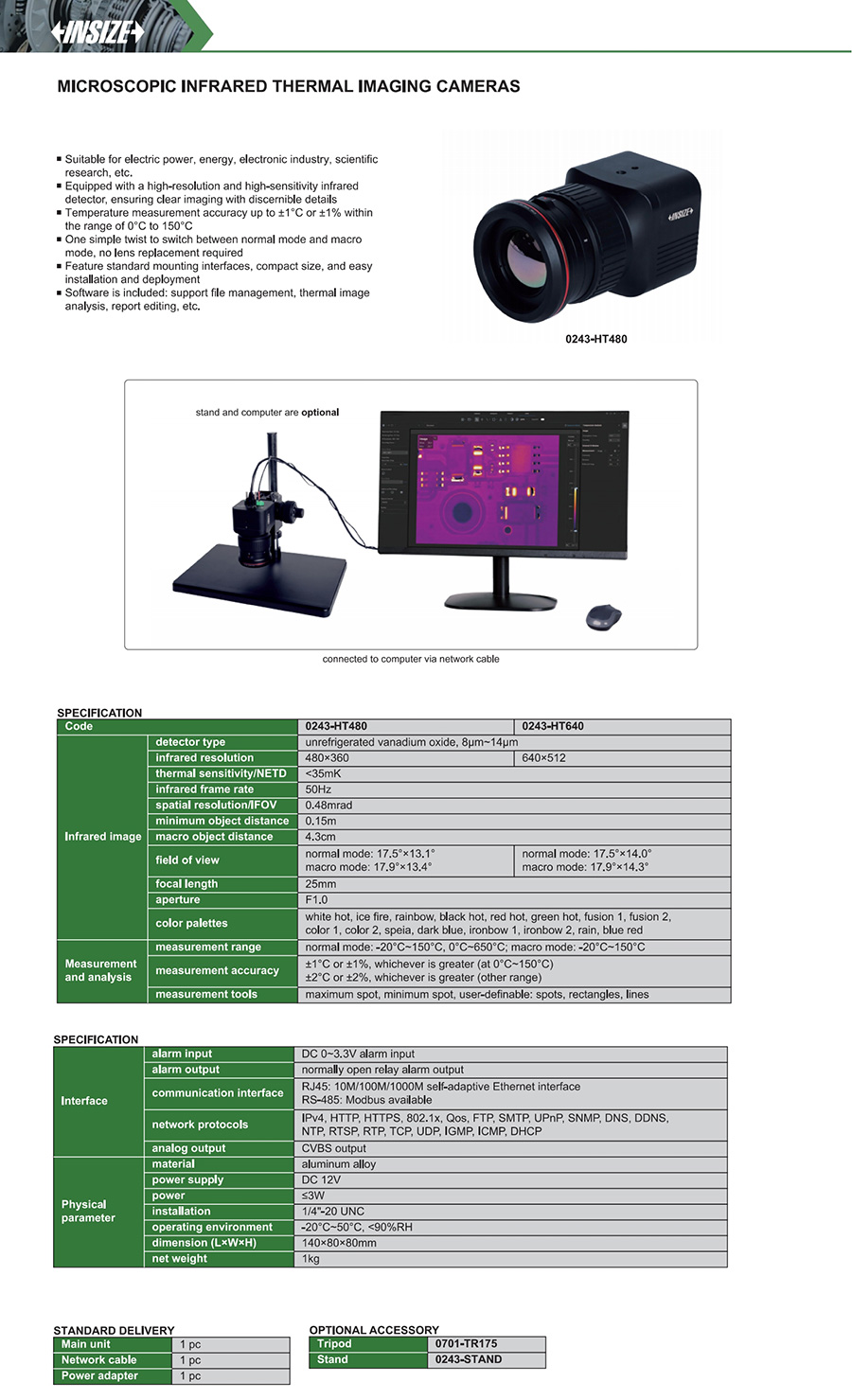

View the complete
product specifications
