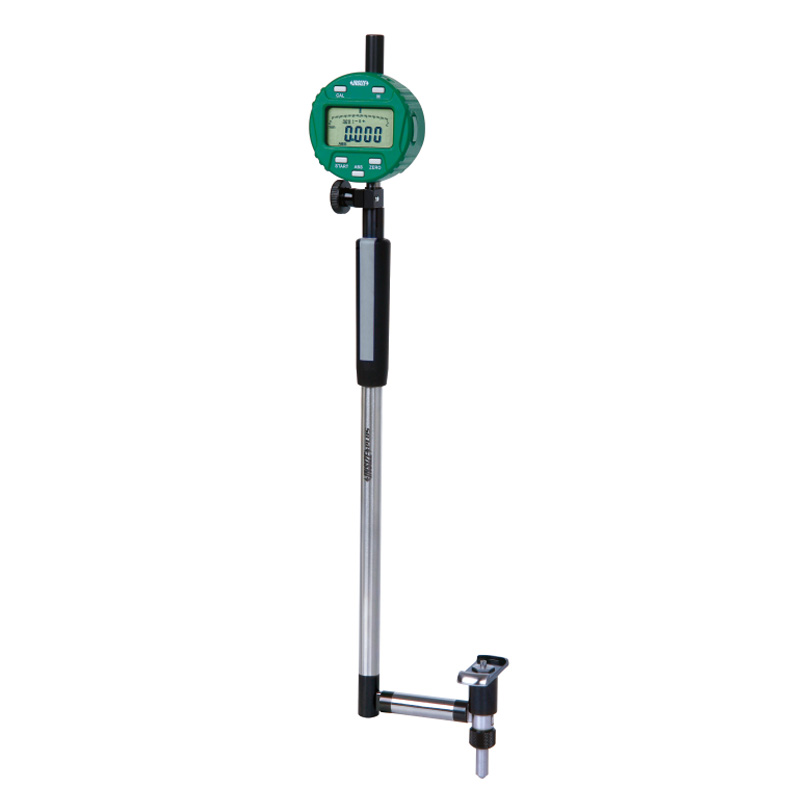

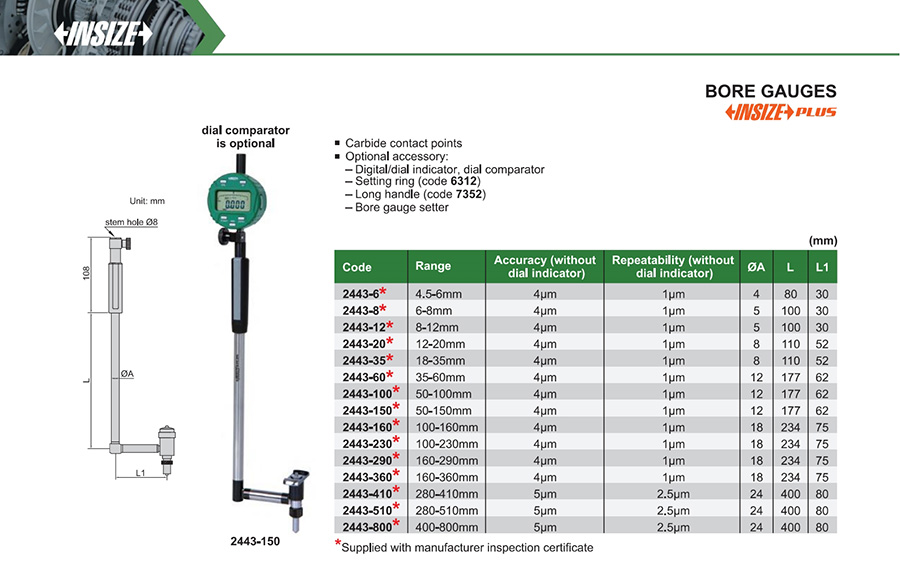

Bore Gauges
Code: 2443
Carbide contact points
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2443-6 | 4.5-6mm | 4µm | 1µm |
| 2443-8 | 6-8mm | 4µm | 1µm |
| 2443-12 | 8-12mm | 4µm | 1µm |
| 2443-20 | 12-20mm | 4µm | 1µm |
| 2443-35 | 18-35mm | 4µm | 1µm |
| 2443-60 | 35-60mm | 4µm | 1µm |
| 2443-100 | 50-100mm | 4µm | 1µm |
| 2443-150 | 50-150mm | 4µm | 1µm |
| 2443-160 | 100-160mm | 4µm | 1µm |
| 2443-230 | 100-230mm | 4µm | 1µm |
| 2443-290 | 160-290mm | 4µm | 1µm |
| 2443-360 | 160-360mm | 4µm | 1µm |
| 2443-410 | 280-410mm | 5µm | 2.5µm |
| 2443-510 | 280-510mm | 5µm | 2.5µm |
| 2443-800 | 400-800mm | 5µm | 2.5µm |
