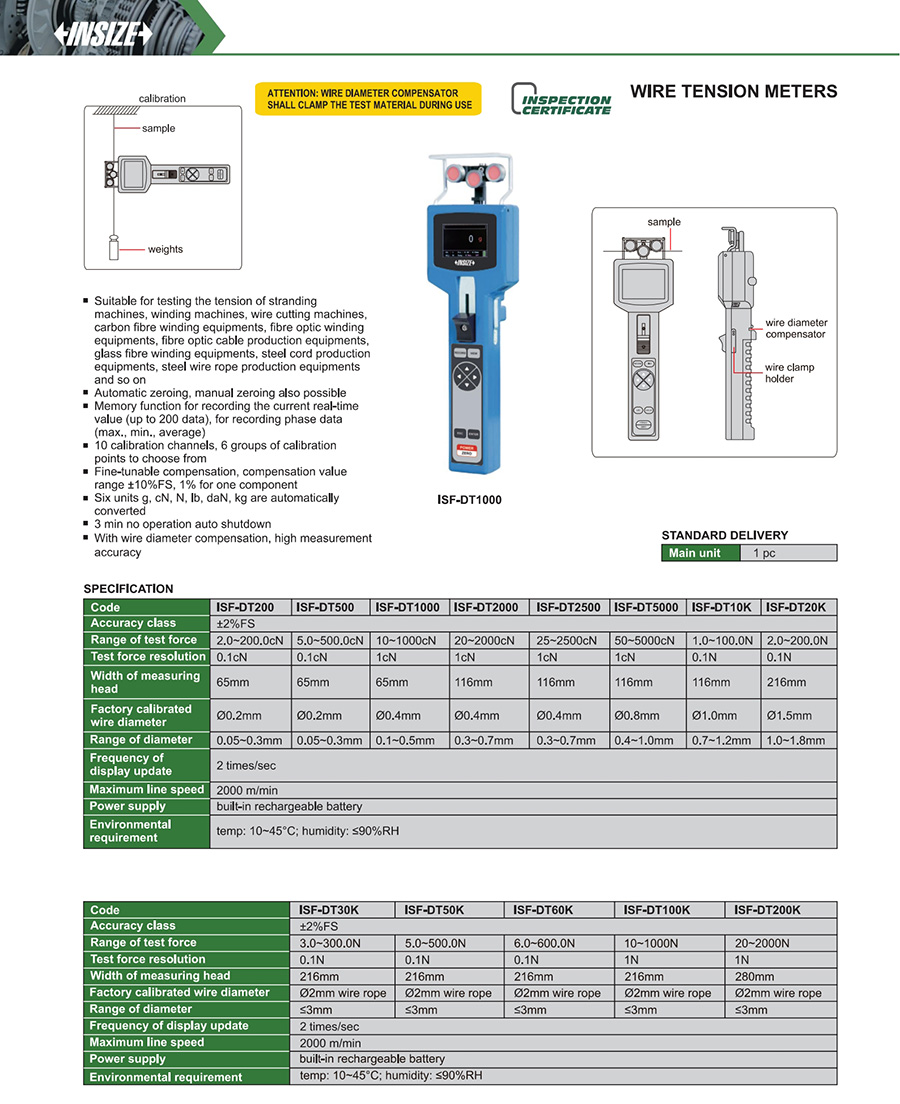

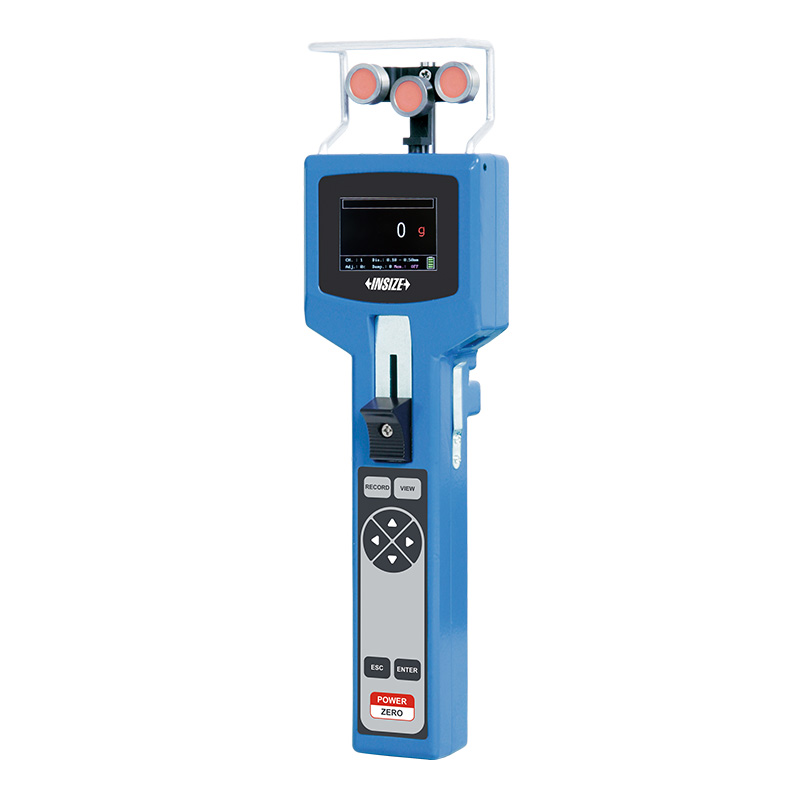

Wire Tension Meters（New）
Code: ISF-DT Series
Suitable for testing the tension of stranding machines, winding machines, wire cutting machines, carbon fibre winding equipments, fibre optic winding equipments, fibre optic cable production equipments, glass fibre winding equipments, steel cord production equipments, steel wire rope production equipments and so on
Automatic zeroing, manual zeroing also possible
Memory function for recording the current real-time value (up to 200 data), for recording phase data (max., min., average)
10 calibration channels, 6 groups of calibration points to choose from
Fine-tunable compensation, compensation value range ±10%FS, 1% for one component
Six units g, cN, N, lb, daN, kg are automatically converted
3 min no operation auto shutdown
With wire diameter compensation, high measurement accuracy
| Code | Type | Range of test force | Accuracy class |
|---|---|---|---|
| ISF-DT200 | Tension | 2.0~200.0cN | ±2%FS |
| ISF-DT500 | Tension | 5.0~500.0cN | ±2%FS |
| ISF-DT1000 | Tension | 10~1000cN | ±2%FS |
| ISF-DT2000 | Tension | 20~2000cN | ±2%FS |
| ISF-DT2500 | Tension | 25~2500cN | ±2%FS |
| ISF-DT5000 | Tension | 50~5000cN | ±2%FS |
| ISF-DT10K | Tension | 1.0~100.0N | ±2%FS |
| ISF-DT20K | Tension | 2.0~200.0N | ±2%FS |
| ISF-DT30K | Tension | 3.0~300.0N | ±2%FS |
| ISF-DT50K | Tension | 5.0~500.0N | ±2%FS |
| ISF-DT60K | Tension | 6.0~600.0N | ±2%FS |
| ISF-DT100K | Tension | 10~1000N | ±2%FS |
| ISF-DT200K | Tension | 20~2000N | ±2%FS |
