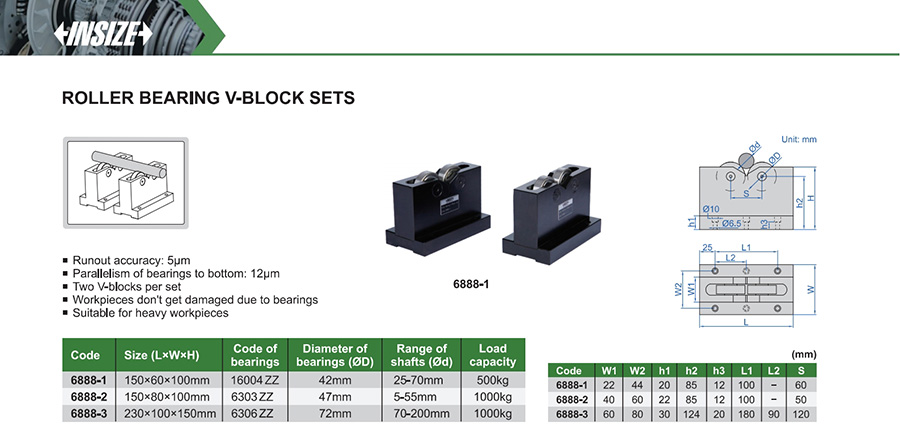

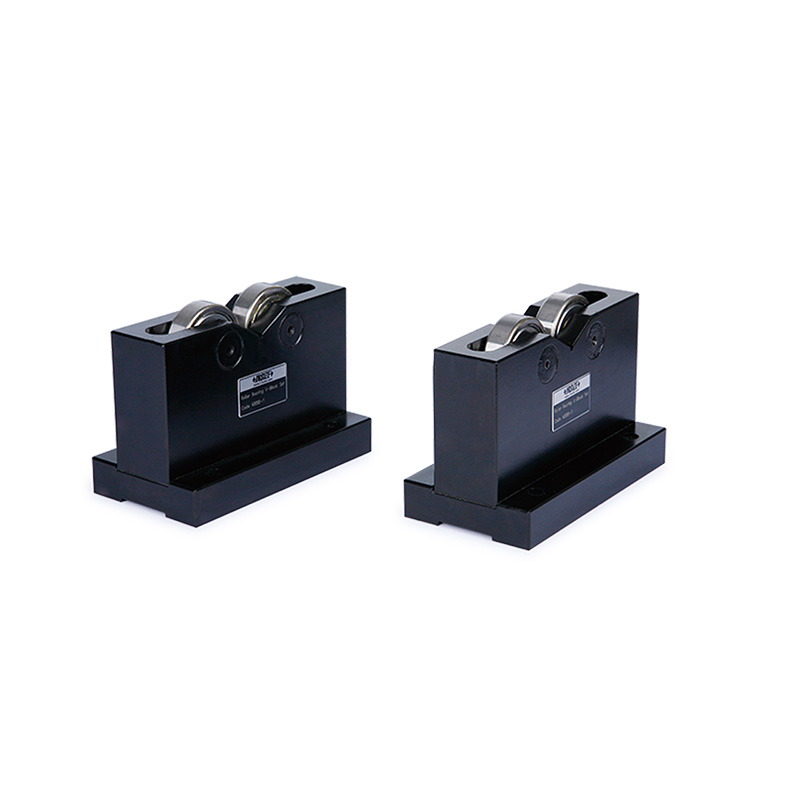

Roller Bearing V-Block Sets
Code: 6888
Runout accuracy: 5µm
Parallelism of bearings to bottom: 12µm
Two V-blocks per set
Workpieces don't get damaged due to bearings
Suitable for heavy workpieces
| Code | Size | Range of shafts |
|---|---|---|
| 6888-1 | 150×60×100mm | 25-70mm |
| 6888-2 | 150×80×100mm | 5-55mm |
| 6888-3 | 230×100×150mm | 70-200mm |
