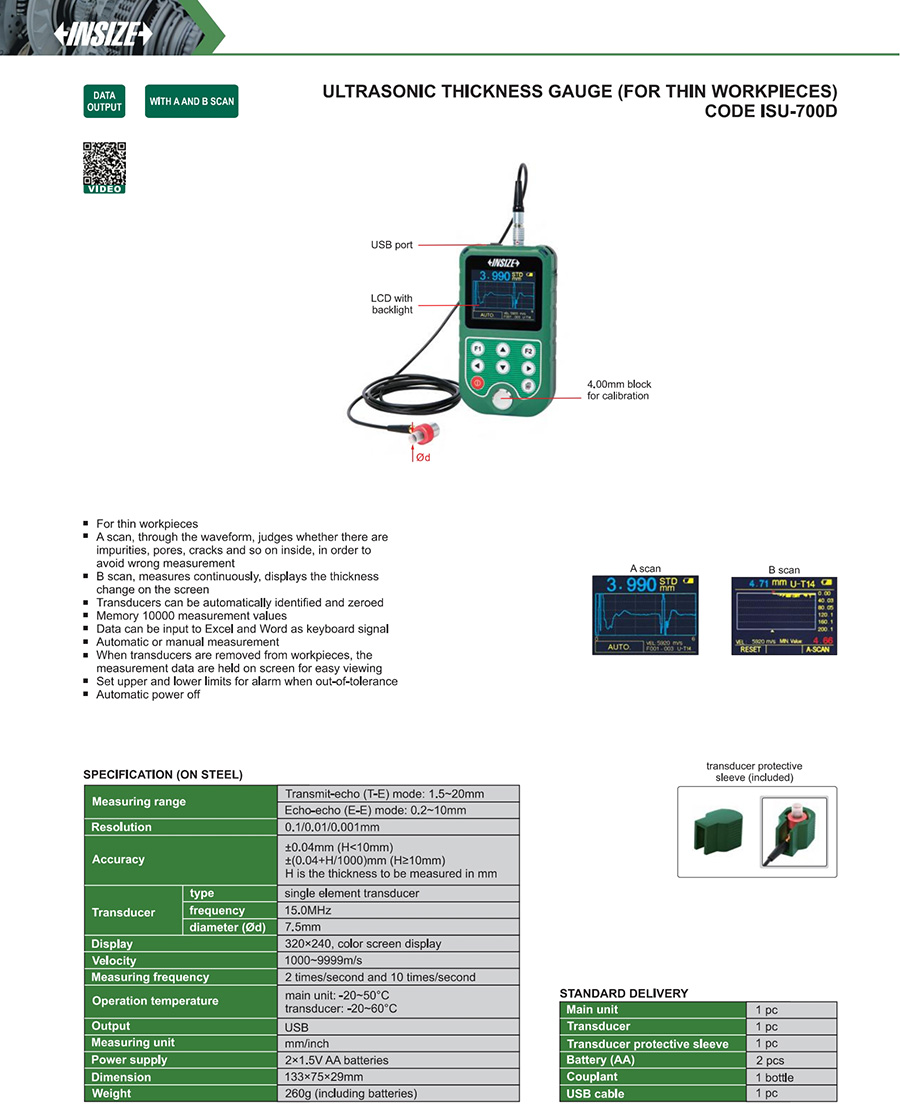

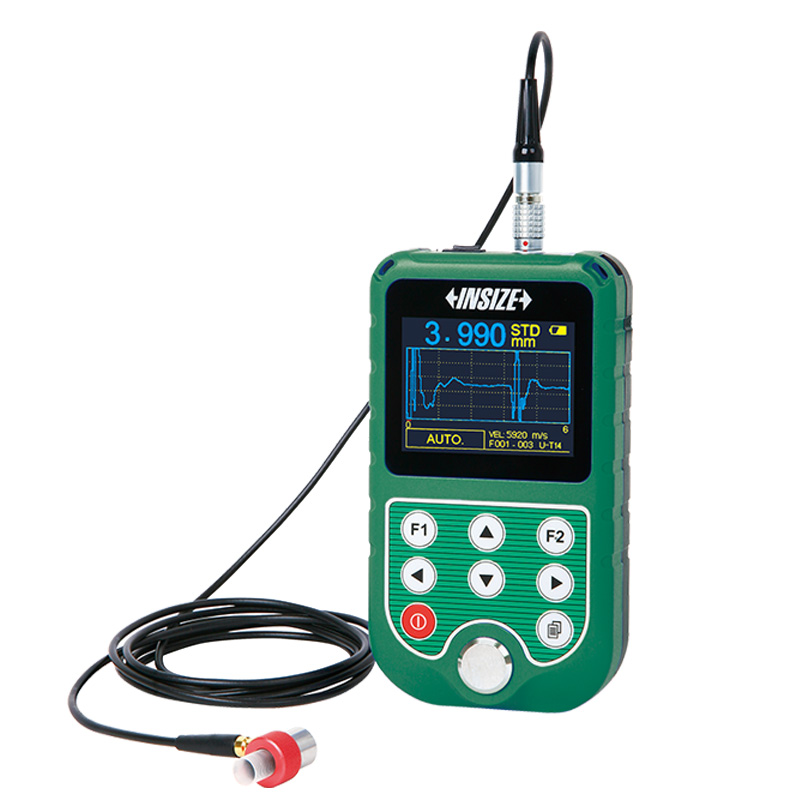

Ultrasonic Thickness Gauge (For Thin Workpieces)
Code: ISU-700D
For thin workpieces
A scan, through the waveform, judges whether there are impurities, pores, cracks and so on inside, in order to avoid wrong measurement
B scan, measures continuously, displays the thickness change on the screen
Transducers can be automatically identified and zeroed
Memory 10000 measurement values
Data can be input to Excel and Word as keyboard signal
Automatic or manual measurement
| Code | Range | Accuracy | Frequency | Data transmission | Velocity | Probe diameter (ØD) |
|---|---|---|---|---|---|---|
| ISU-700D | T-E: 1.5~20mm, E-E: 0.2~10mm | ±0.04mm (H<10mm), ±(0.04+H/1000)mm (H≥10mm) | 15.0MHz | USB | 1000~9999m/s | 7.5mm |
