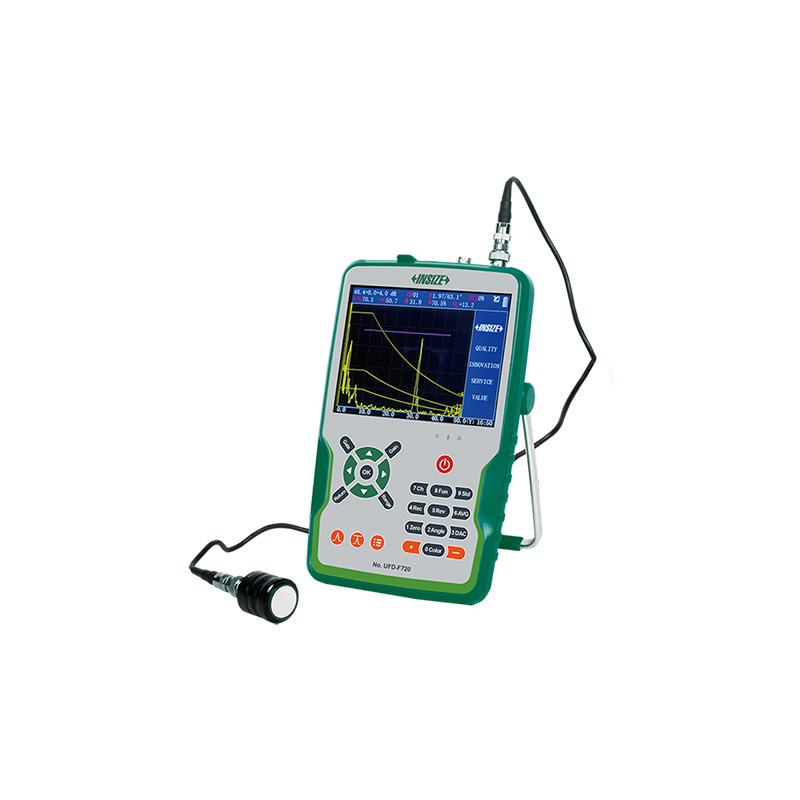

Digital Ultrasonic Flaw Detector (Standard Type)
Code: UFD-F720
Compact and lightweight, easy to carry
High sensitivity, accurate defect positioning, super anti-interference ability, stable and reliable performance
Built-in automatic performance test function
Unique square wave excitation signal processing technology
The background color and brightness can be freely adjusted to adapt to strong or low light environments to ensure a clear display
| Code | Range | Frequency | Vertical linearity | Horizontal linearity | Dynamic range | Resolving power | Sensitivity leavings |
|---|---|---|---|---|---|---|---|
| UFD-F720 | 0~15000mm | 0.4~20MHz | ≤3.0% | ≤0.1% | ≥36dB | >36dB | >62dB (200Ø2 flat bottom hole, narrow band) |
View the complete
product specifications
