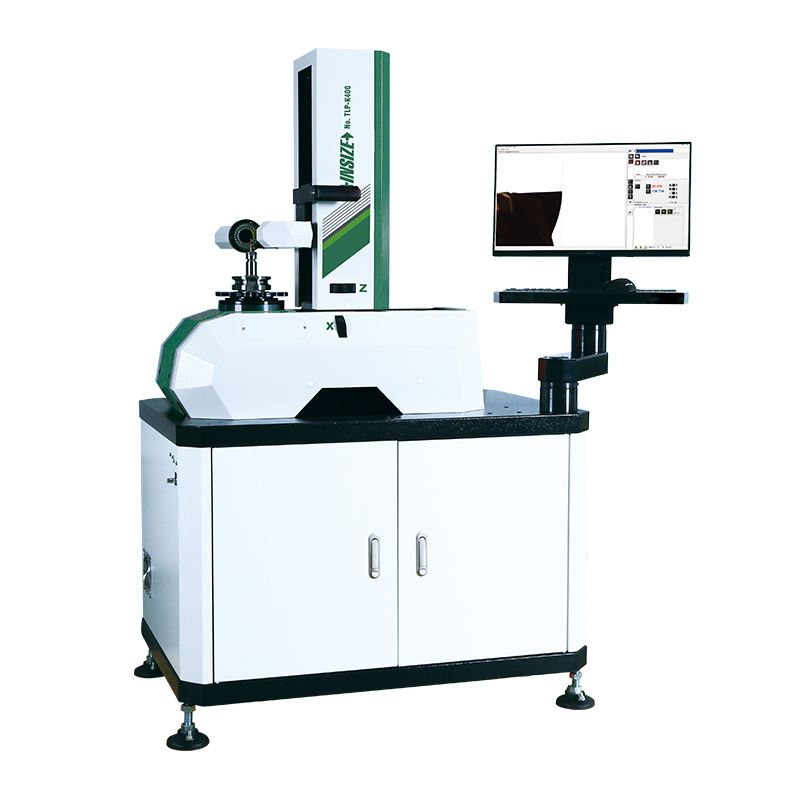

Tool Presetter (Basic Type)
Code: TLP-K400
One-click graphical measurement function
Check and measure cutting tools
Measure tool length, tool diameter, arc radius, primary rake angle, secondary rake angle, etc.
50X magnification
Dynamic crosshair
| Code | Maximum tool diameter (X axis) | Maximum tool height (Z axis) | Repeatability of X axis | Repeatability of Z axis | X/Z axis resolution |
|---|---|---|---|---|---|
| TLP-K400 | 400mm | 400mm | 2μm | 2μm | 1μm |
