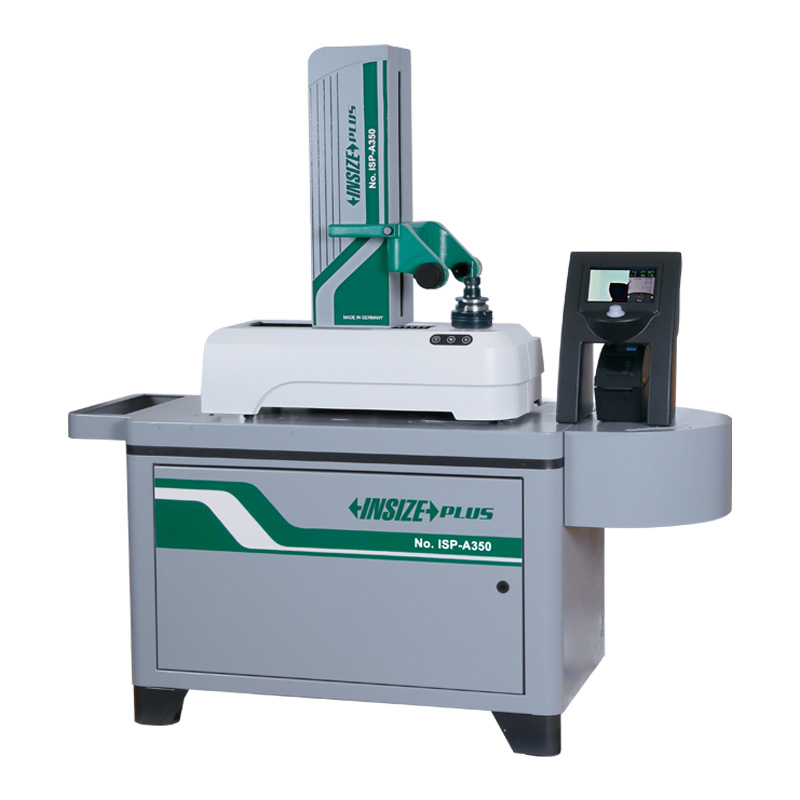

Tool Presetter
Code: ISP-A350
Check, preset and measure cutting tools
Telecentric lens CCD camera system
Use Bosch or Festo pneumatic components, THK guideways and HEIDENHAIN scales
Built-in 104 cutting edge shapes, automatic recognition
Measuring modes: absolute, relative and incremental measurement
Measuring radius, angle, concentricity, axial runout, etc.
Storage of 1000 tool parameters
View, print and export measurement results
| Code | Maximum tool diameter (X axis) | Maximum tool height (Z axis) | Repeatability of X axis | Repeatability of Z axis | X/Z axis resolution |
|---|---|---|---|---|---|
| ISP-A350 | 320mm | 350mm | 2µm | 2µm | 1µm |

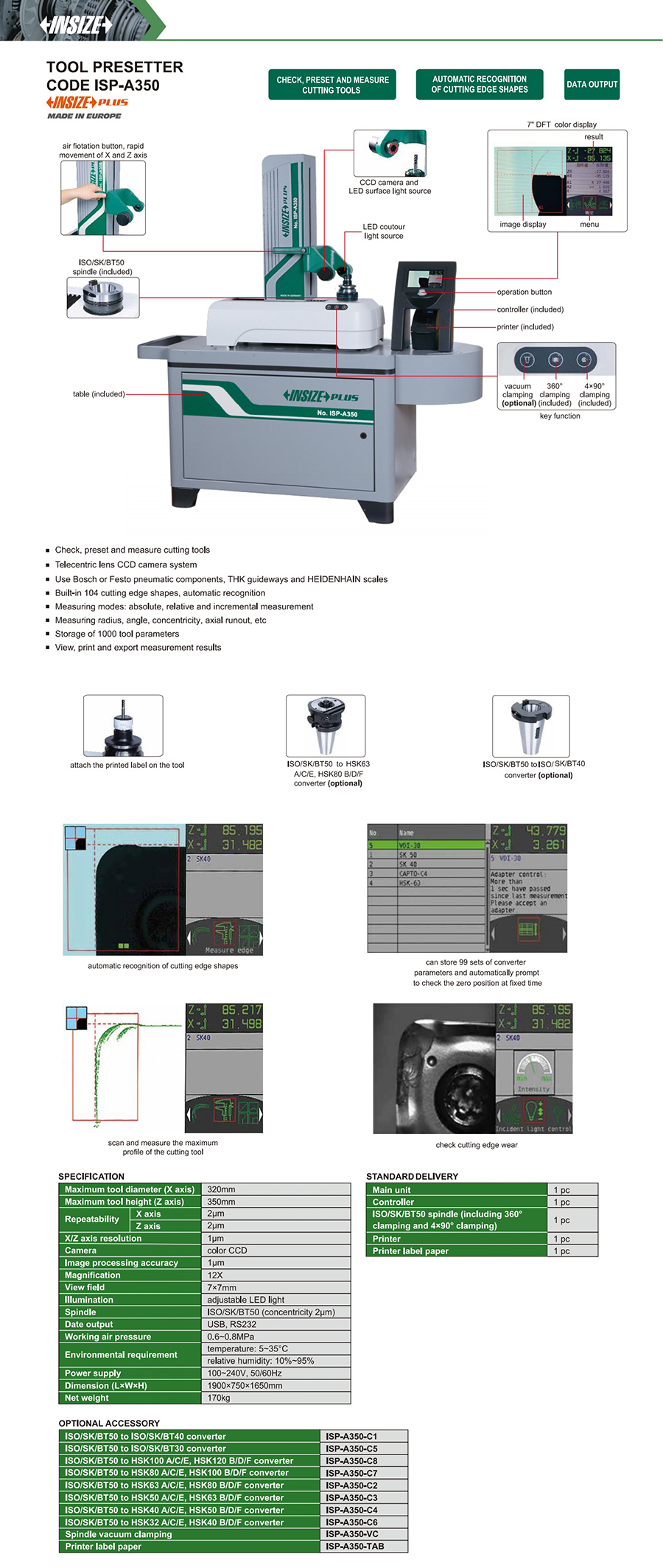

View the complete
product specifications
