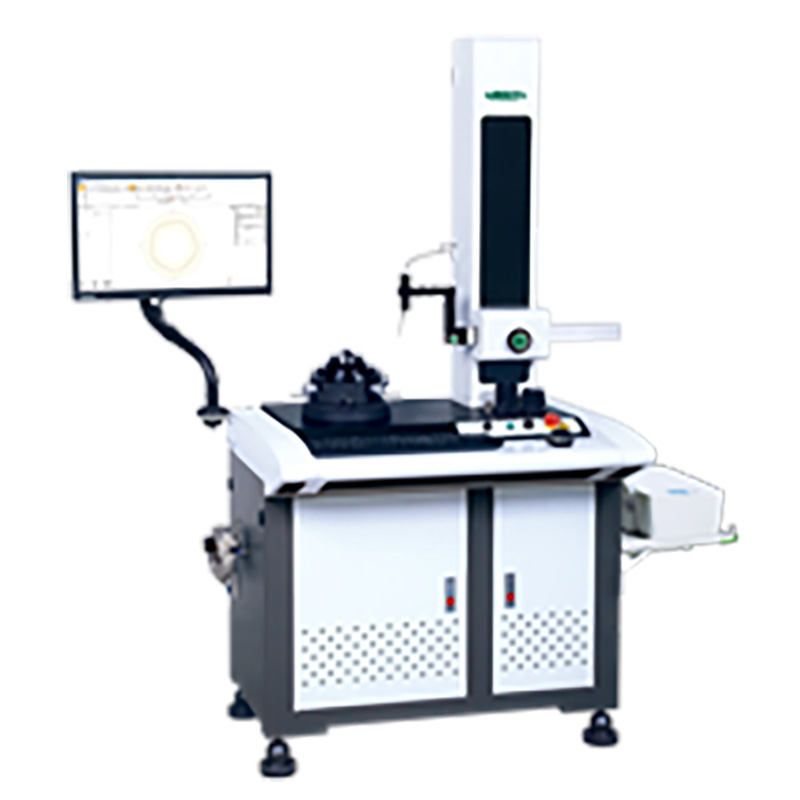

Roundness Measuring Machine
Code: RCT-RA260
Air-floating spindle
Spectrum analysis, automatic gap/burr removal, waveform analysis
4 roundness evaluation methods: smallest area method, least square method, smallest circumscribed circle method, largest inscribed circle method
Measuring filer: 1-15upr, 1-50upr, 1-150upr, 1-250upr, 1-500upr, 15-100upr, 15-500upr, 2-15upr
Filter form: Gauss (ISO standard)
Software is included, for measurement, analysis, data output, etc.
| Code | Travel of Z axis | Probe measuring range | Rotary stage max. measuring diameter | Rotary stage max. workpiece diameter (rotation diameter) |
|---|---|---|---|---|
| RCT-RA260 | 420mm | ±300µm | 260mm | 400mm |
