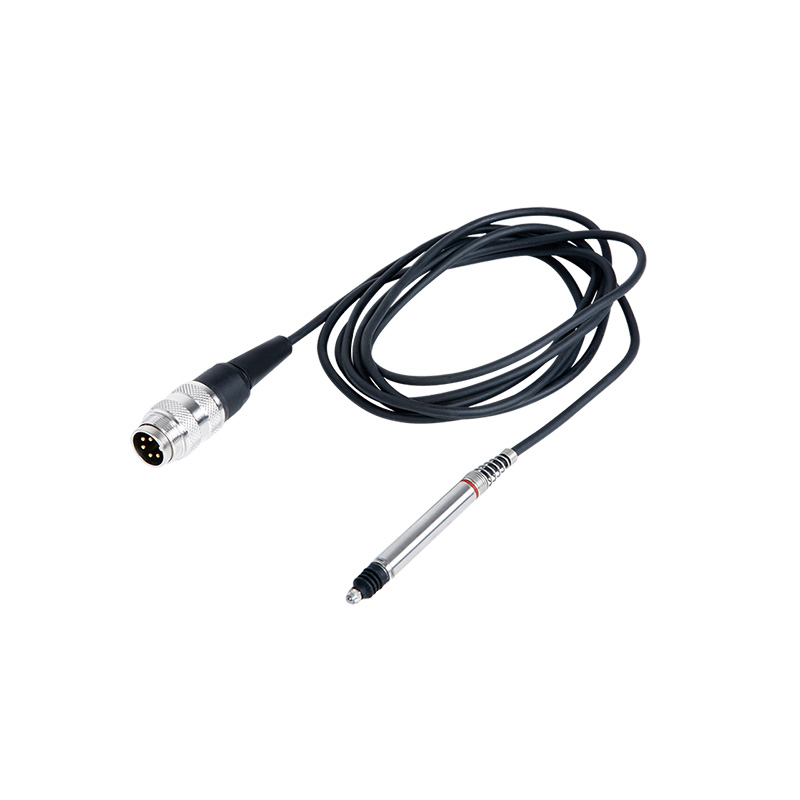

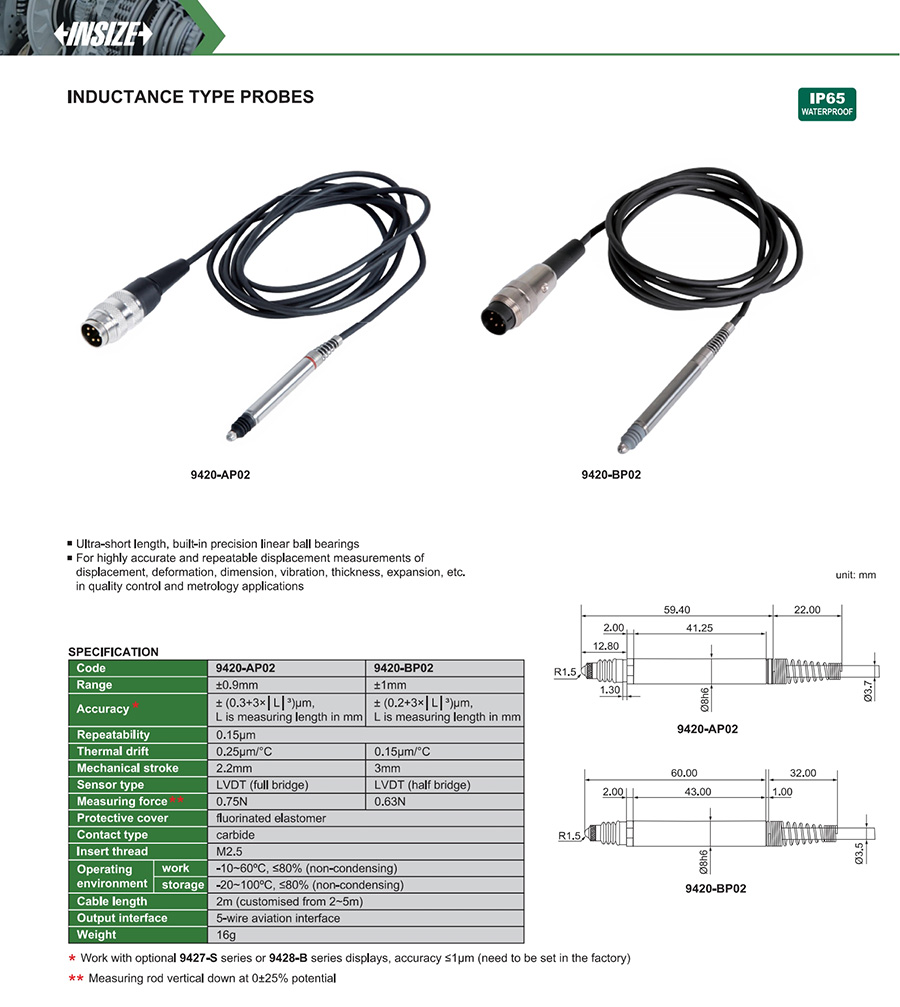

Inductance Type Probes
Code: 9420
Ultra-short length, built-in precision linear ball bearings
For highly accurate and repeatable displacement measurements of displacement, deformation, dimension, vibration, thickness, expansion, etc. in quality control and metrology applications
| Code | Type | Sensor type | Range | Accuracy |
|---|---|---|---|---|
| 9420-AP02 | inductance | lvdt (full bridge) | ±0.9mm | ±0.3+3×│L│³μm, (L is measuring length in mm) |
| 9420-BP02 | inductance | lvdt (half bridge) | ±1mm | ±0.2+3×│L│³μm, (L is measuring length in mm) |
View the complete
product specifications
