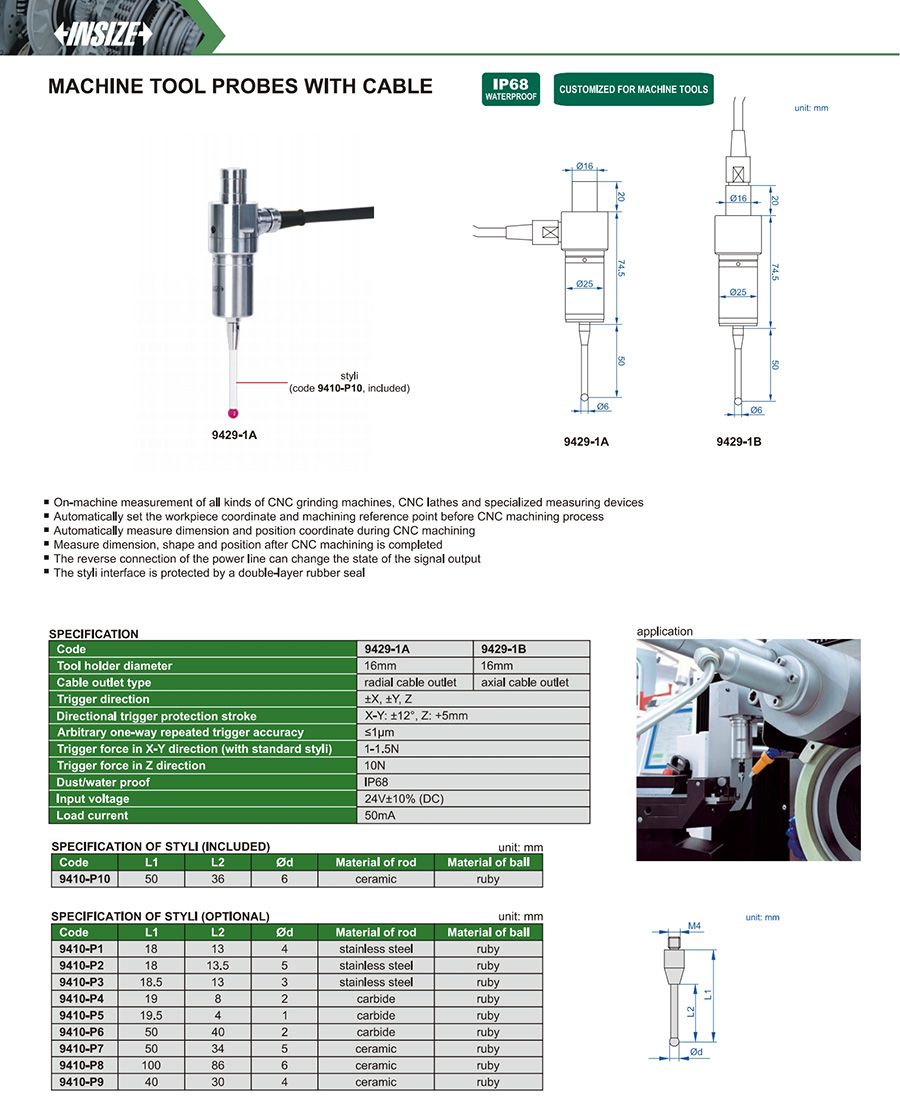

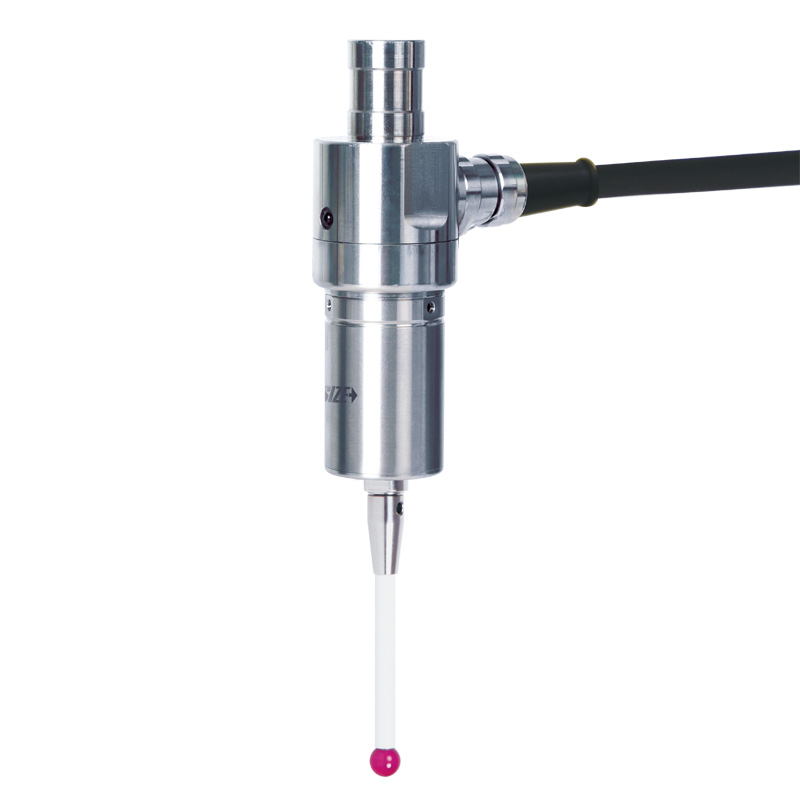

Machine Tool Probes With Cable
Code: 9429-1A/1B
On-machine measurement of all kinds of CNC grinding machines, CNC lathes and specialized measuring devices
Automatically set the workpiece coordinate and machining reference point before CNC machining process
Automatically measure dimension and position coordinate during CNC machining
Measure dimension, shape and position after CNC machining is completed
The reverse connection of the power line can change the state of the signal output
The styli interface is protected by a double-layer rubber seal
| Code | Protection stroke | Trigger force | Repeated Accuracy |
|---|---|---|---|
| 9429-1A | X-Y: ±12°, Z: +5mm | X-Y: 1-1.5N, Z: 10N | ≤1μm |
| 9429-1B | X-Y: ±12°, Z: +5mm | X-Y: 1-1.5N, Z: 10N | ≤1μm |
