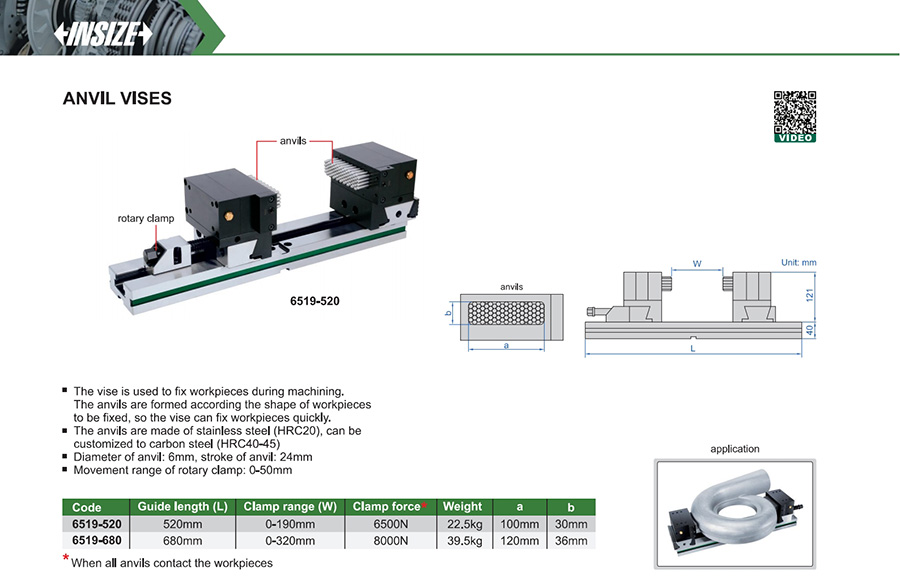

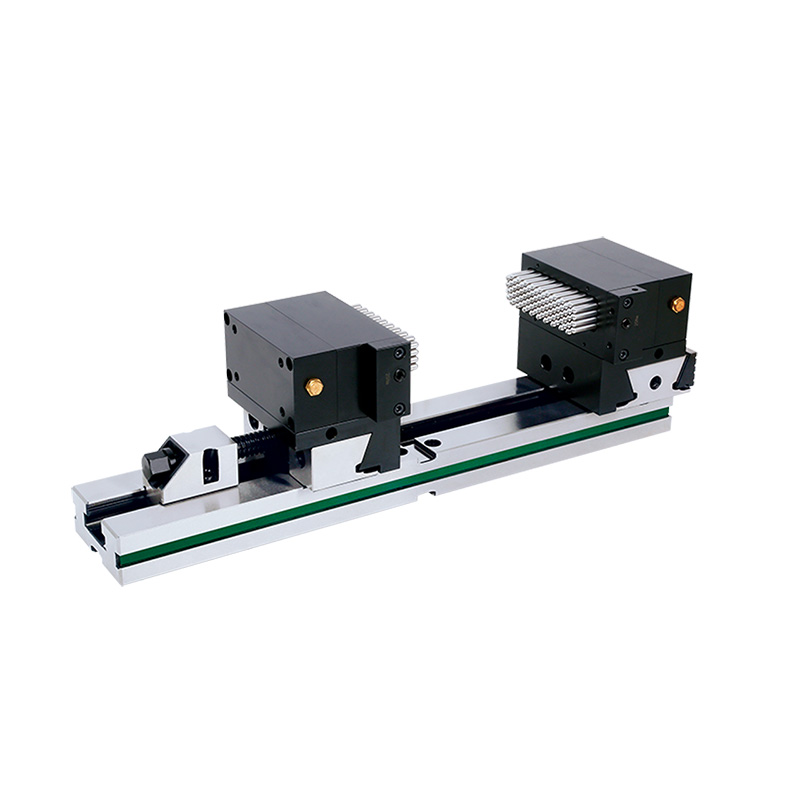

Anvil Vises
Code: 6519
The vise is used to fix workpieces during machining.
The anvils are formed according the shape of workpieces to be fixed, so the vise can fix workpieces quickly.
The anvils are made of stainless steel (HRC20), can be customized to carbon steel (HRC40-45)
Diameter of anvil: 6mm, stroke of anvil: 24mm
Movement range of rotary clamp: 0-50mm
| Code | Weight | Guide length (L) | Clamp range (W) | Clamp force |
|---|---|---|---|---|
| 6519-520 | 22.5kg | 520mm | 0-190mm | 6500N |
| 6519-680 | 39.5kg | 680mm | 0-320mm | 8000N |
