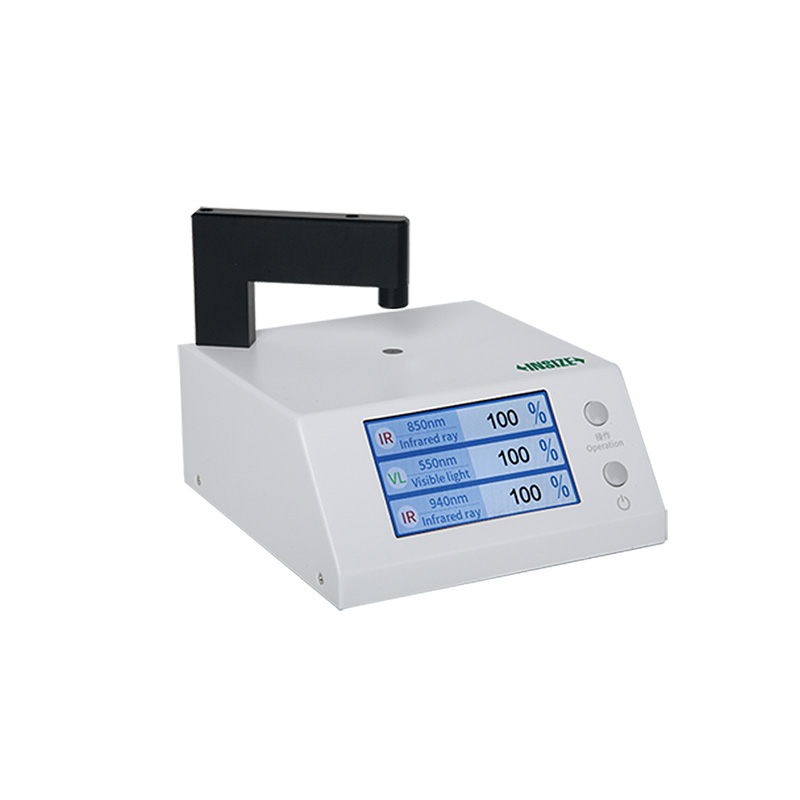

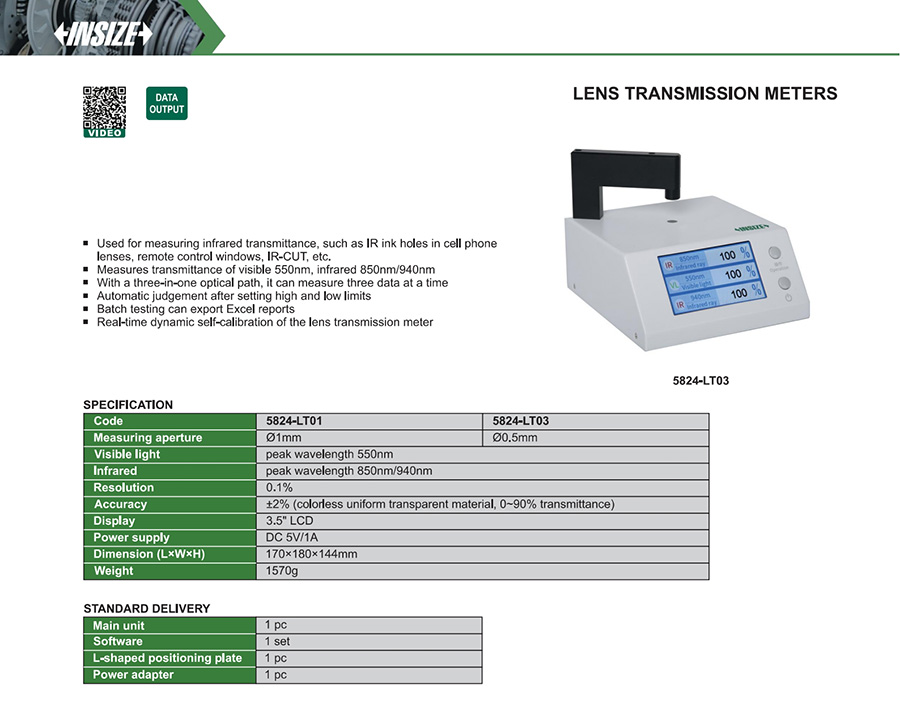

Lens Transmission Meters
Code: 5824
Used for measuring infrared transmittance, such as IR ink holes in cell phone lenses, remote control windows, IR-CUT, etc.
Measures transmittance of visible 550nm, infrared 850nm/940nm
With a three-in-one optical path, it can measure three data at a time
Automatic judgement after setting high and low limits
| Code | Visible light | Infrared |
|---|---|---|
| 5824-LT01 | peak wavelength 550nm | peak wavelength 850nm/940nm |
| 5824-LT03 | peak wavelength 550nm | peak wavelength 850nm/940nm |
View the complete
product specifications
