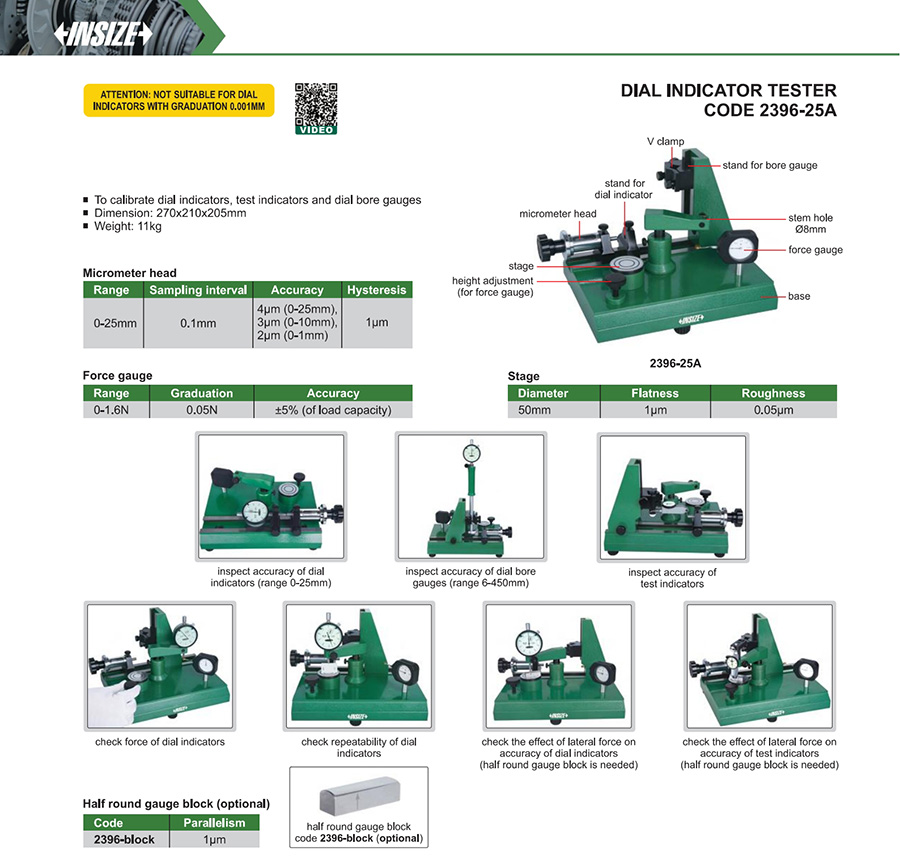

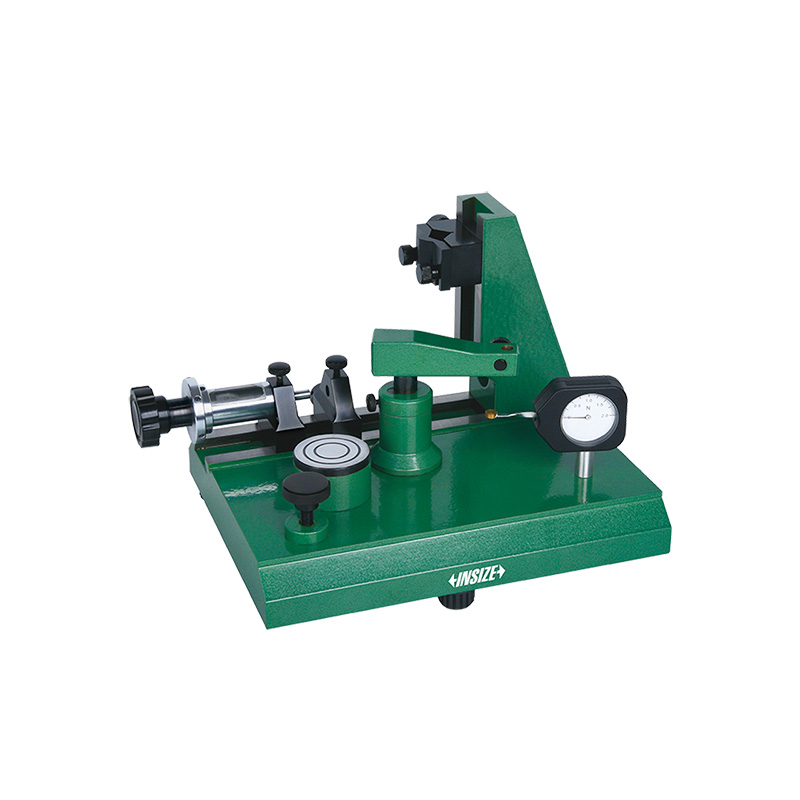

Dial Indicator Tester
Code: 2396-25A
To calibrate dial indicators, test indicators and dial bore gauges
Dimension: 270x210x205mm
Weight: 11kg
| Code | Range | Accuracy |
|---|---|---|
| 2396-25A | micrometer head: 0-25mm; force gauge: 0-1.6N | micrometer head: 4µm (0-25mm), 3µm (0-10mm), 2µm (0-1mm); force gauge: ±5% (of load capacity) |
