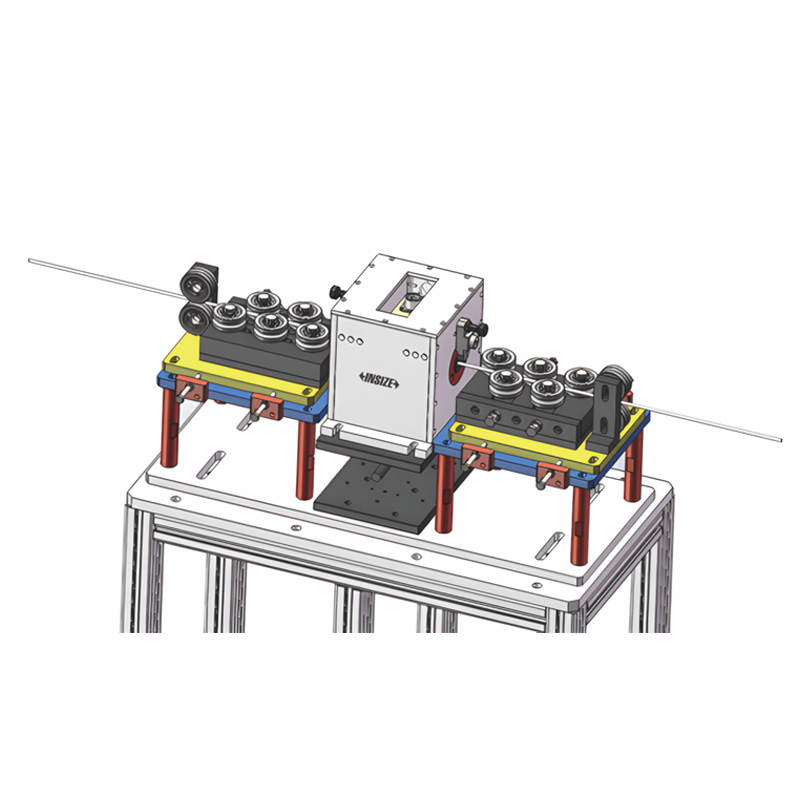

Online Eddy Current Testing System
Code: ECT-WZ□□□
Capable of high-speed data processing, with a detection speed up to 1~1200 m/min
High-performance DSP algorithm and signal processing enable the detection of microcracks with a depth of 0.05mm
Professional digital filtering is adopted to effectively suppress various on-site interference signals, ensuring the accuracy and stability of detection
| Code | Frequency | Speed | Gain range | Phase rotation |
|---|---|---|---|---|
| ECT-WZ□□□ | 100Hz~3.2MHz | Flaw detection: ˃0.5m/min | 23dB~82dB, 0.1dB step | 0~359°, 1°step |

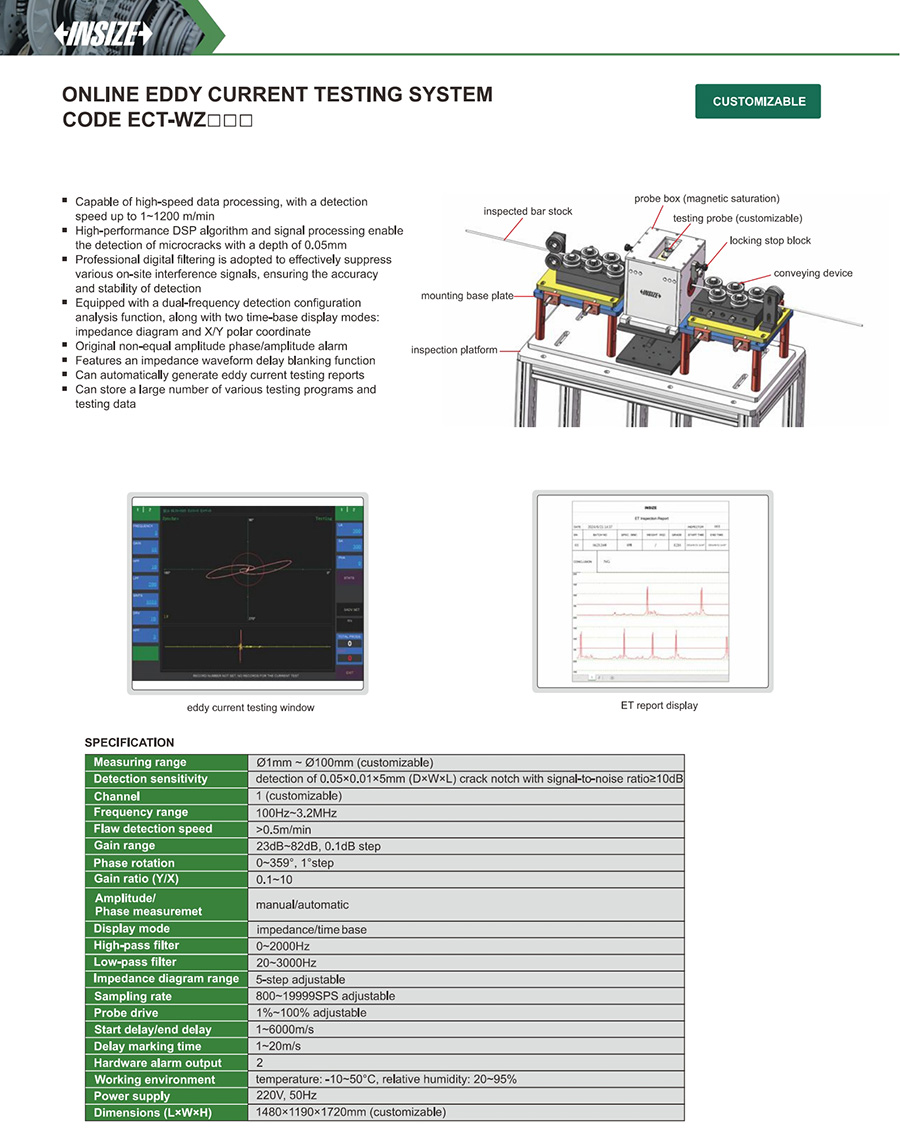

View the complete
product specifications
