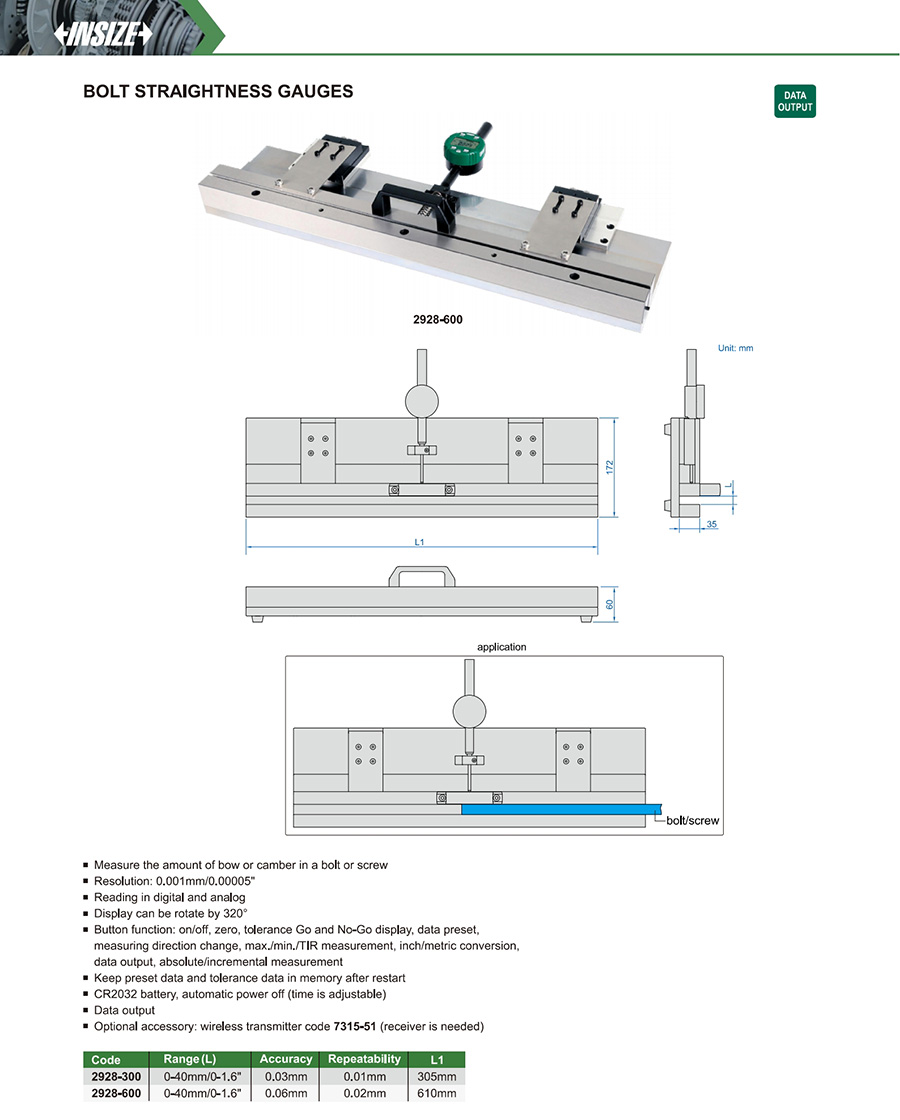

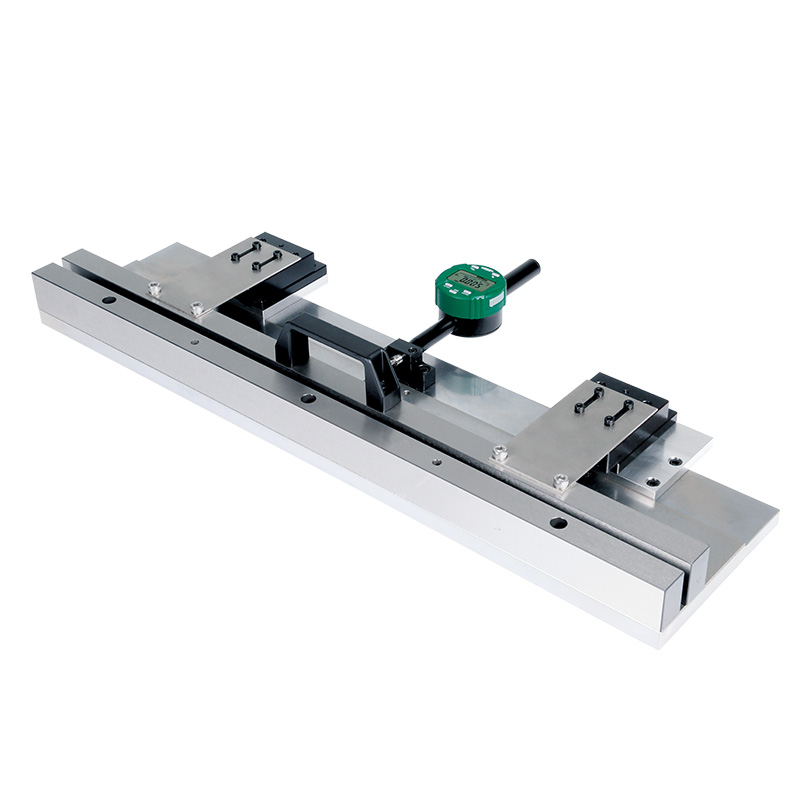

Bolt Straightness Gauges
Code: 2928
Measure the amount of bow or camber in a bolt or screw
Reading in digital and analog
Display can be rotate by 320°
Button function: on/off, zero, tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric conversion, data output, absolute/incremental measurement
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2928-300 | 0-40mm/0-1.6" | 0.03mm | 0.001mm/0.00005" |
| 2928-600 | 0-40mm/0-1.6" | 0.06mm | 0.001mm/0.00005" |
View the complete
product specifications
