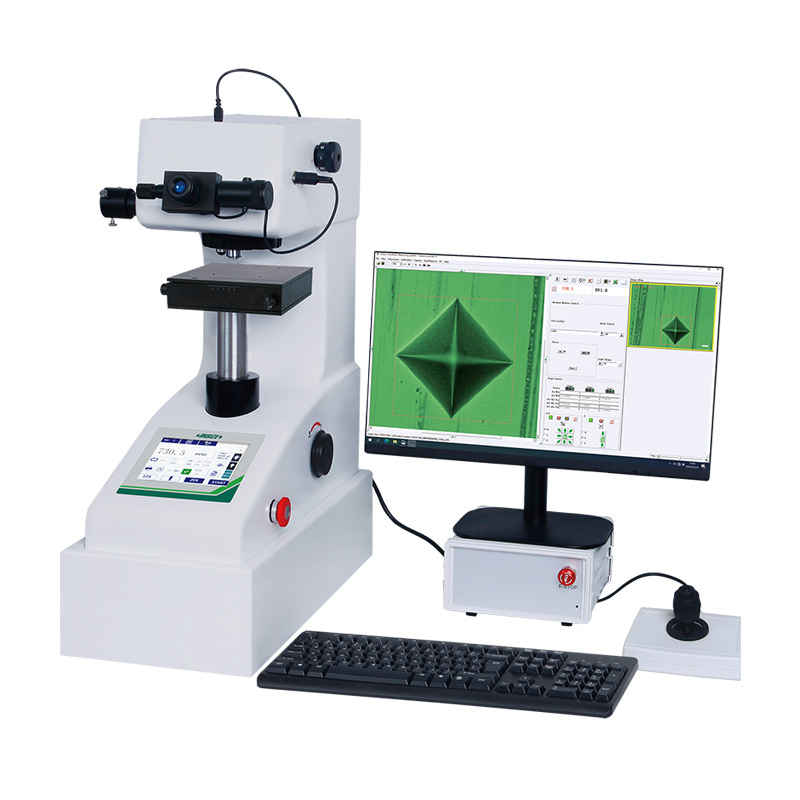

Automatic Micro-Vickers Hardness Tester
Code: HDT-AMV338
Automatic switch between the indenter and objective lens
Z-axis automatic focus, X, Y axis automatic movement, can be for multi-point continuous measurement
Automatic moving table by built-in step motor, high positioning accuracy, good repeatability, fast moving speed, high efficiency
| Code | Load control | Max. workpiece height | Max. testing width | Hardness scale | Total magnification |
|---|---|---|---|---|---|
| HDT-AMV338 | automatic (load/dwell/unload) | 80mm | 110mm | HV0.01~HV1 | 100X (for measurement or observation), 400X (for measurement) |

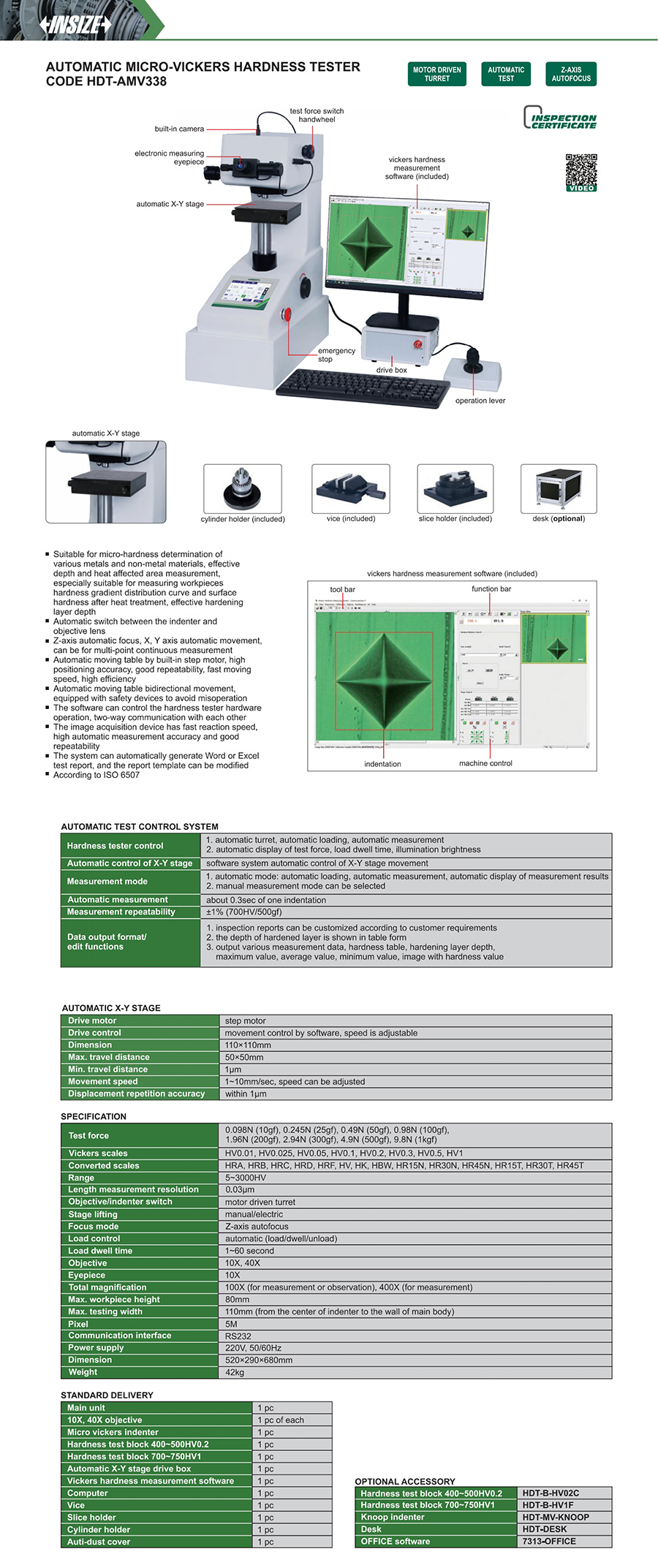

View the complete
