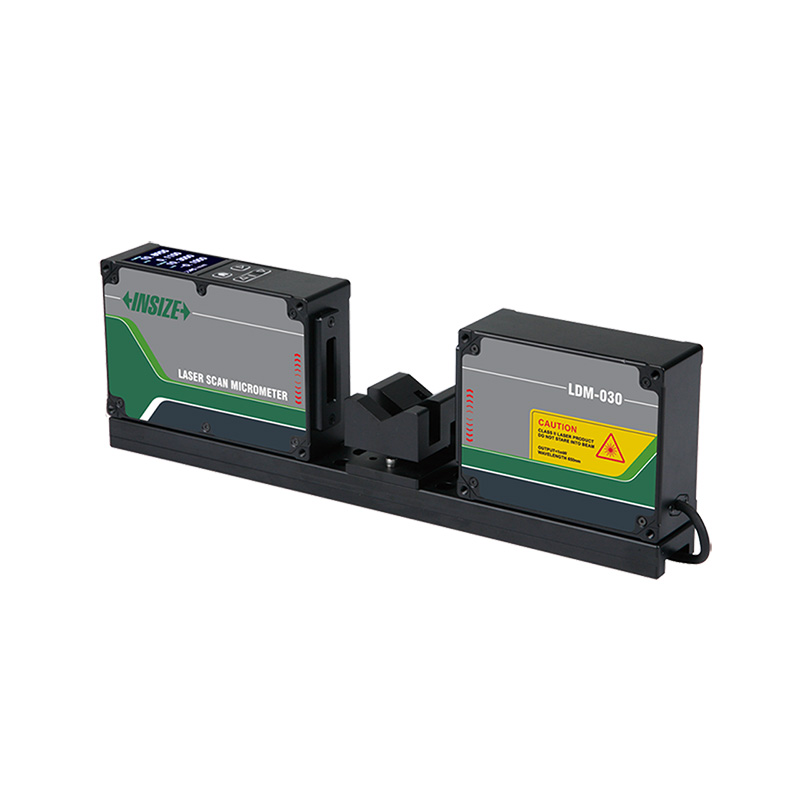

Laser Scan Micrometers (Advanced Type)
Code: LDM series
Measure outer diameter, ellipticity, run-out, maximum diameter of tools, etc.
Can be used for transparent or non transparent workpieces
Simultaneous measurement of 4 outer diameters
Tolerance measurement
Online or offline measurement
Connected with computer, PLC, control box
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| LDM-030 | 0.1~30mm | ±(0.5+10%D)μm | (0.3+5%D)μm |
| LDM-065 | 0.5~65mm | ±(0.5+10%D)μm | (0.3+5%D)μm |
| LDM-085 | 1~85mm | ±6μm | 3µm |
