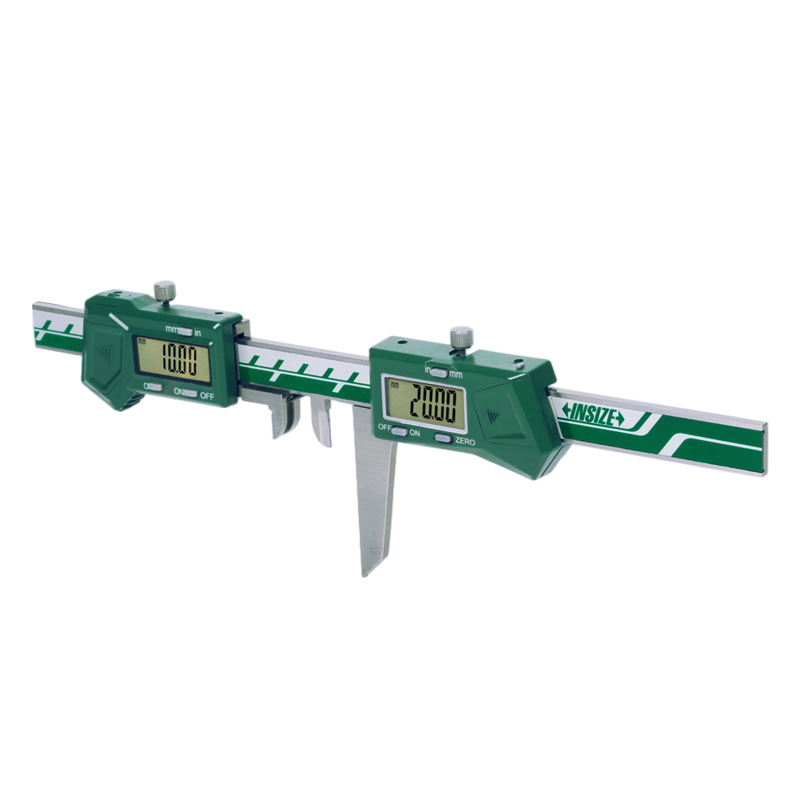

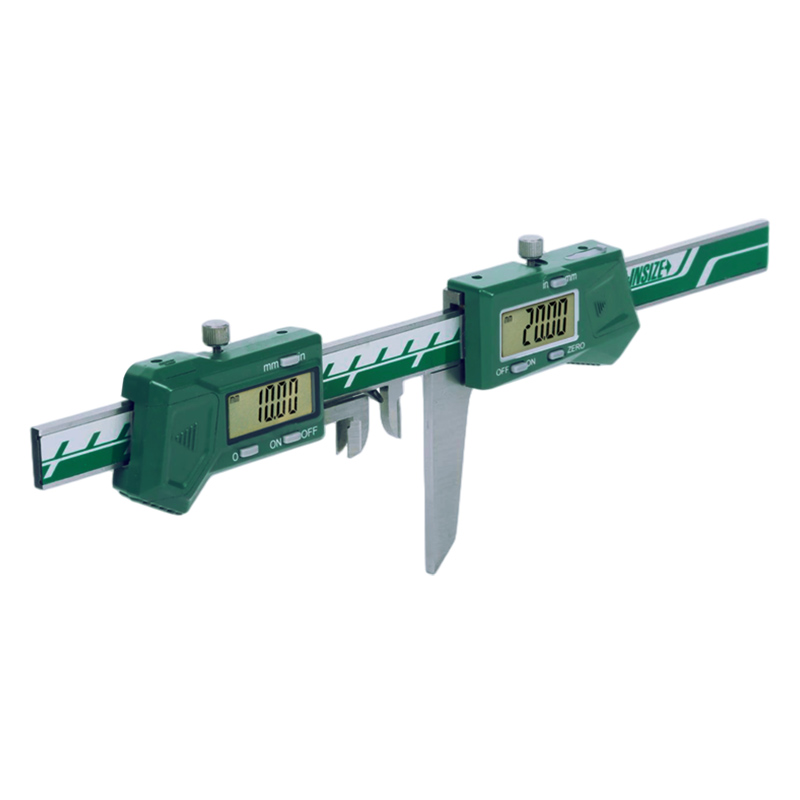

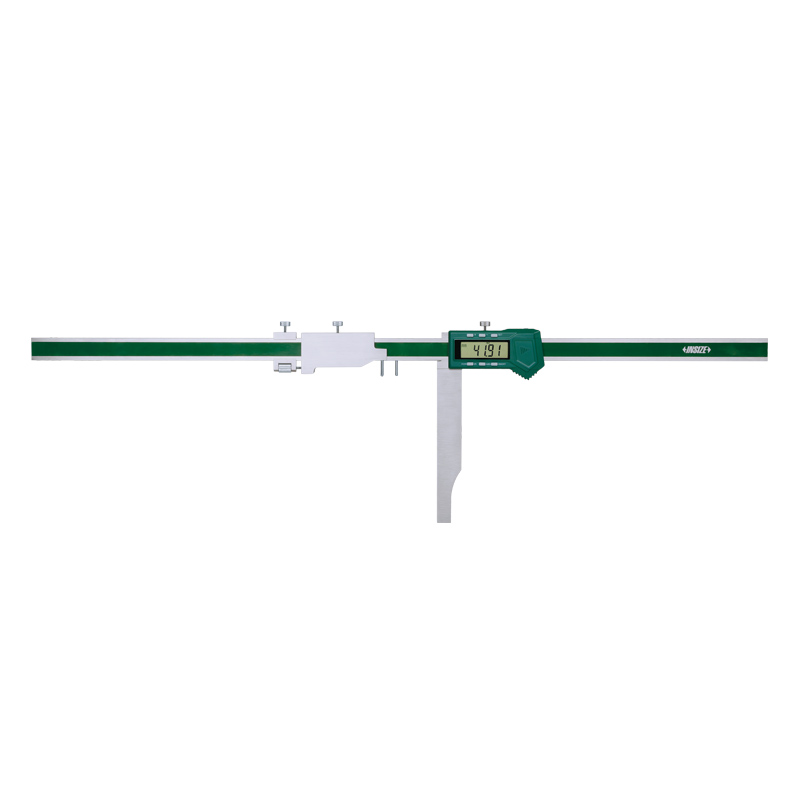

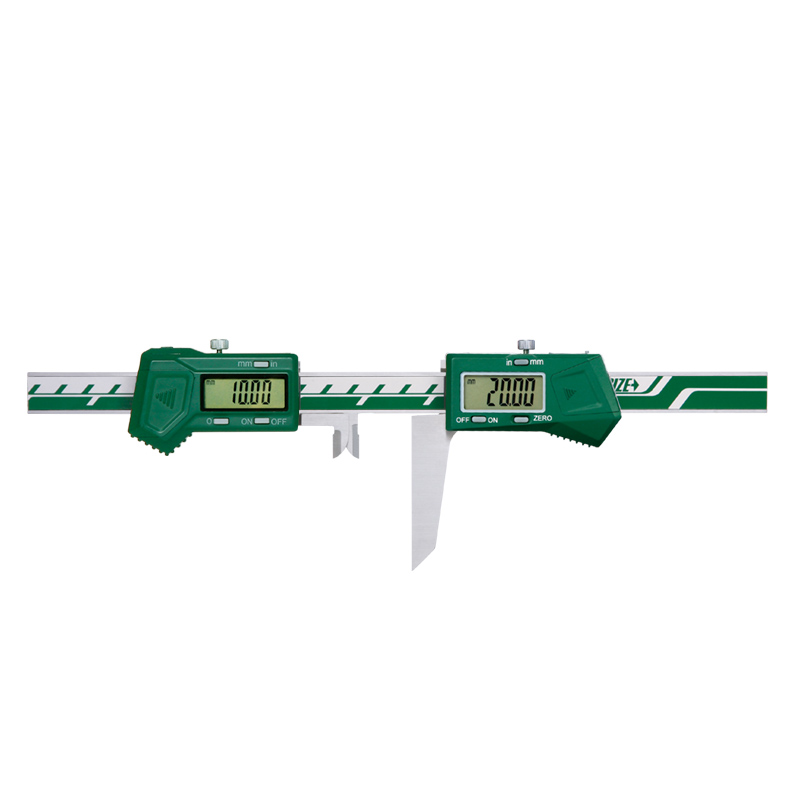

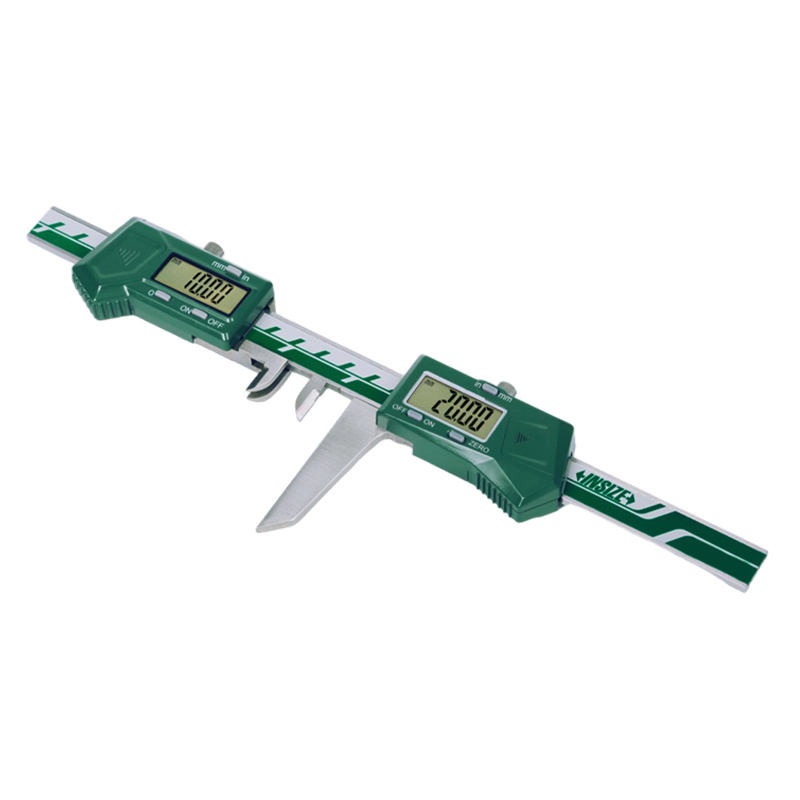

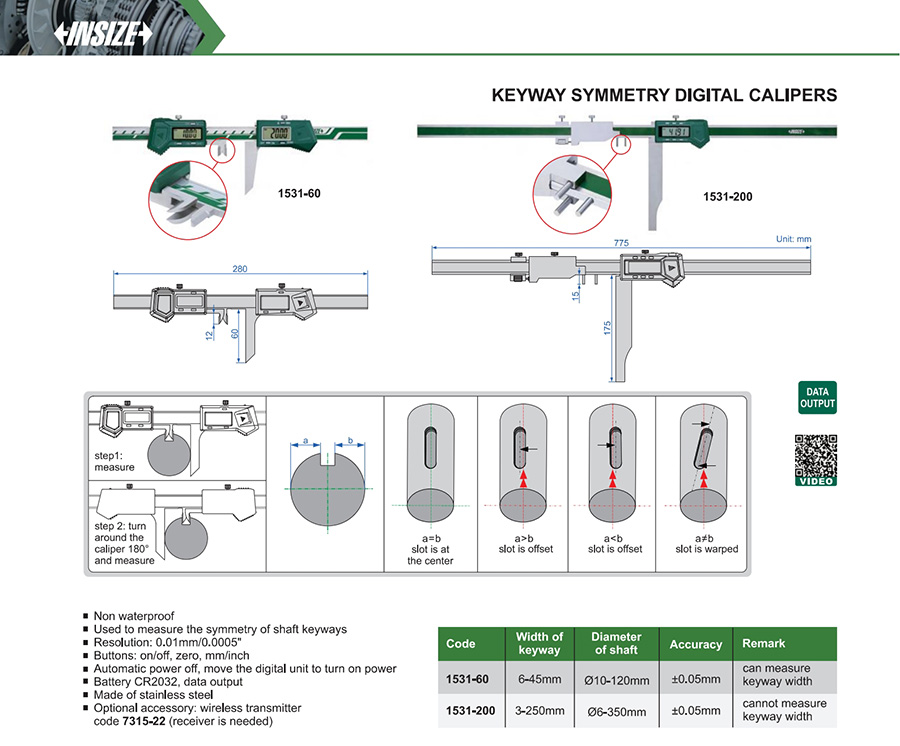

Keyway Symmetry Digital Calipers
Code: 1531
Non waterproof
Used to measure the symmetry of shaft keyways
Buttons: on/off, zero, mm/inch
Automatic power off, move the digital unit to turn on power
Battery CR2032, data output
Made of stainless steel
| Code | Accuracy | Resolution | Data output | Diameter of shaft |
|---|---|---|---|---|
| 1531-60 | ±0.05mm | 0.01mm/0.0005" | with data interface | Ø10-120mm |
| 1531-200 | ±0.05mm | 0.01mm/0.0005" | with data interface | Ø6-350mm |
