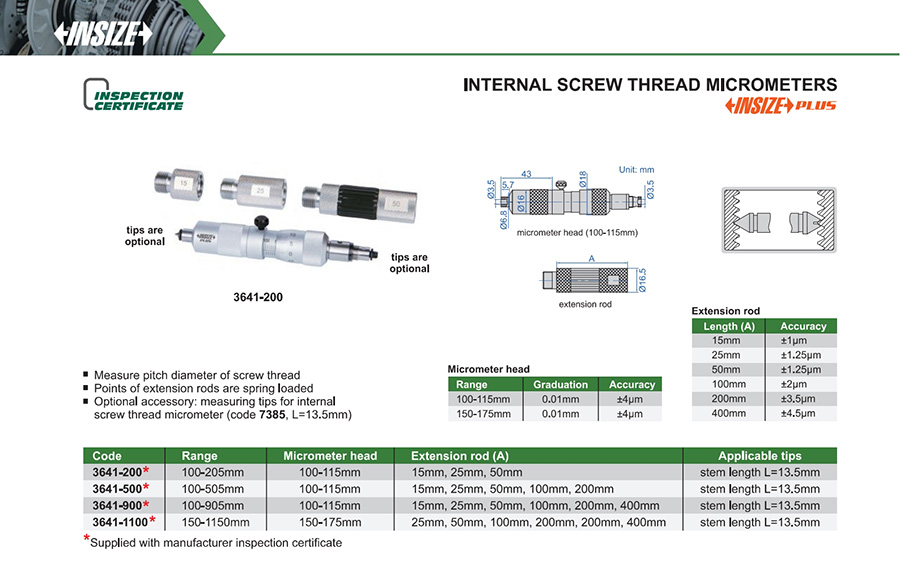

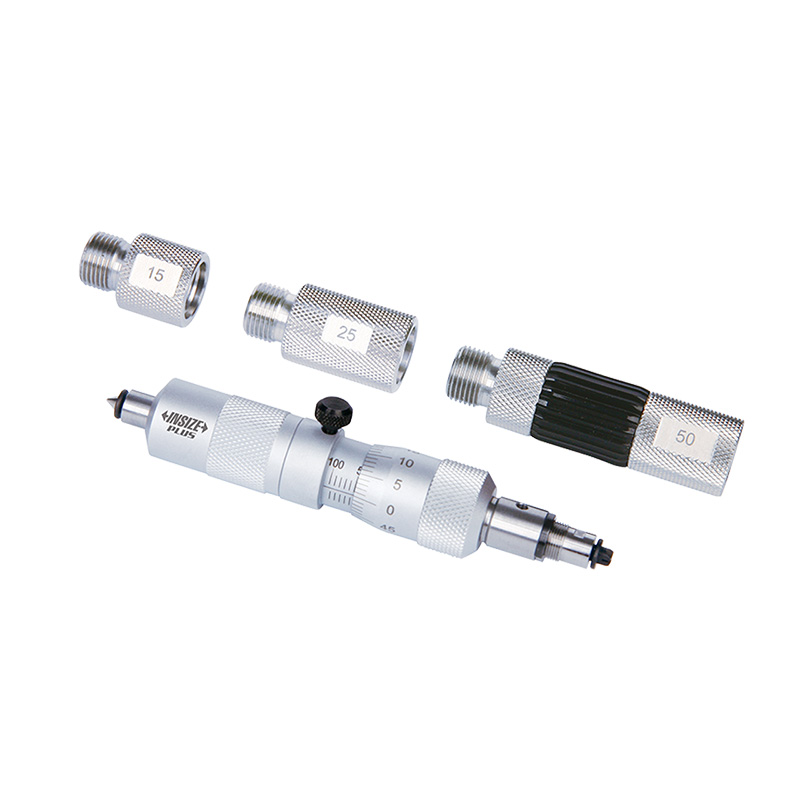

Internal Screw Thread Micrometers
Code: 3641
Measure pitch diameter of screw thread
Points of extension rods are spring loaded
Optional accessory: measuring tips for internal screw thread micrometer (code 7385, L=13.5mm)
| Code | Range | Graduation |
|---|---|---|
| 3641-200 | 100-205mm | 0.01mm |
| 3641-500 | 100-505mm | 0.01mm |
| 3641-900 | 100-905mm | 0.01mm |
| 3641-1100 | 150-1150mm | 0.01mm |
