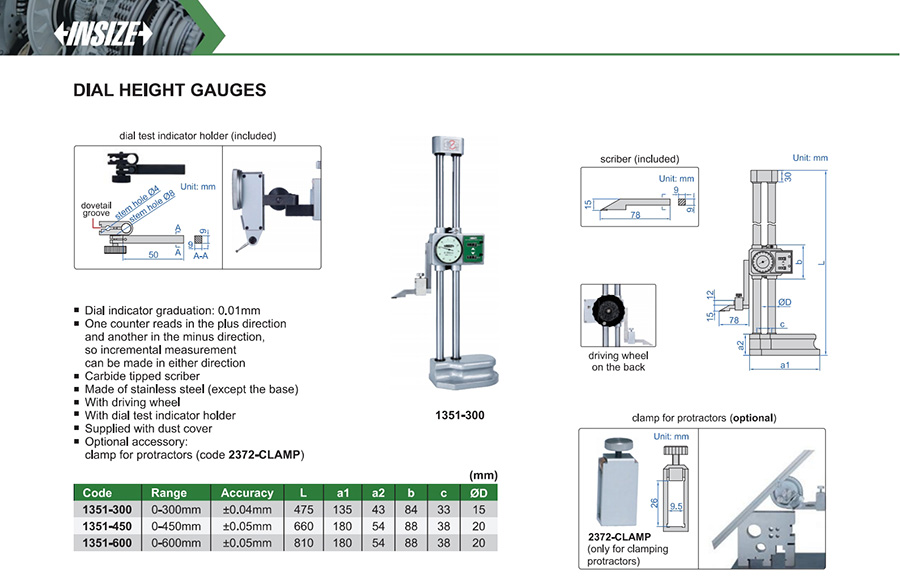

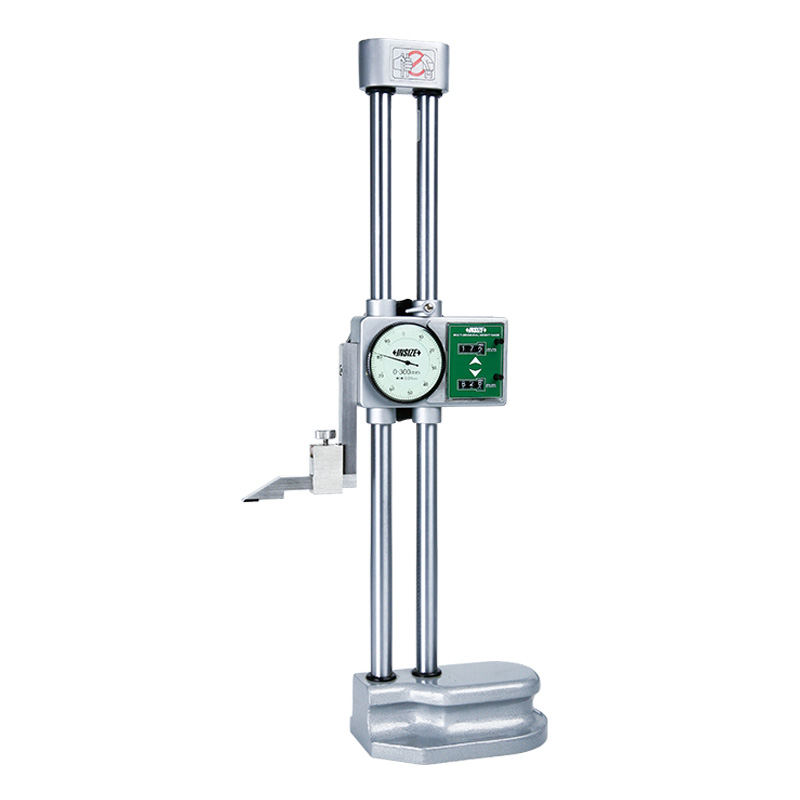

Dial Height Gauges
Code: 1351
One counter reads in the plus direction and another in the minus direction, so incremental measurement can be made in either direction
Carbide tipped scriber
Made of stainless steel (except the base)
With driving wheel
With dial test indicator holder
Supplied with dust cover
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 1351-300 | 0-300mm | ±0.04mm | 0.01mm |
| 1351-450 | 0-450mm | ±0.05mm | 0.01mm |
| 1351-600 | 0-600mm | ±0.05mm | 0.01mm |
