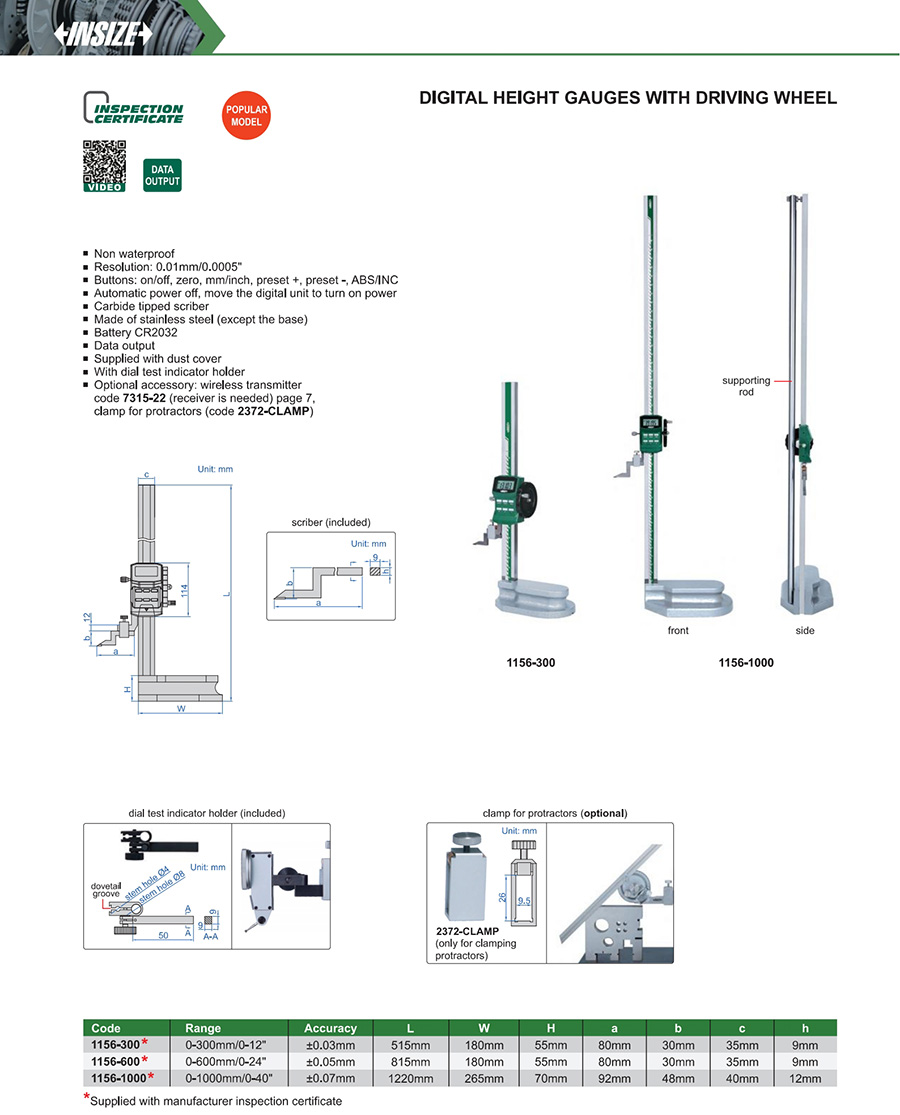

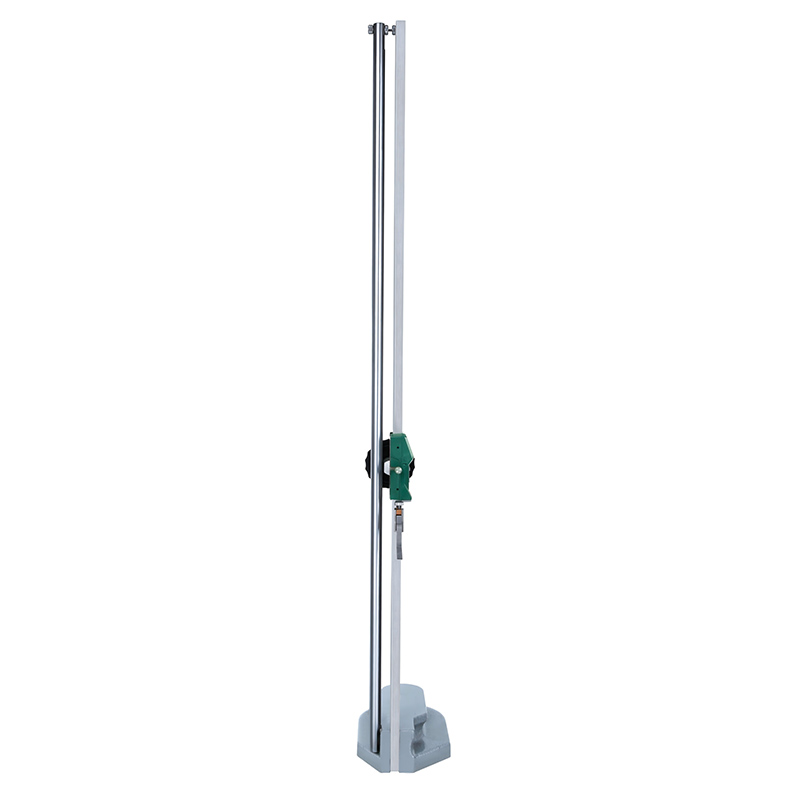

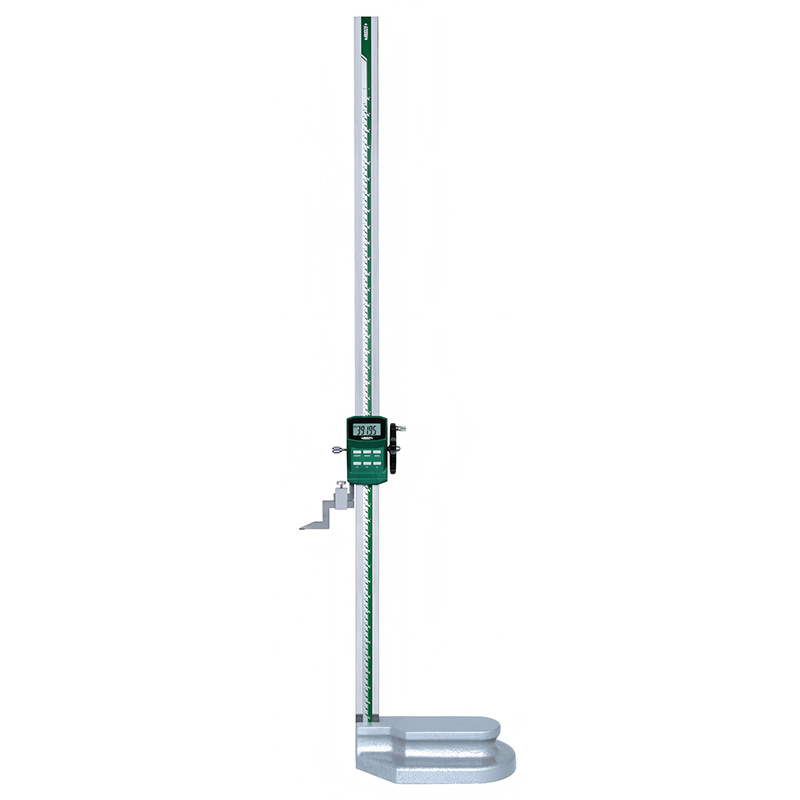

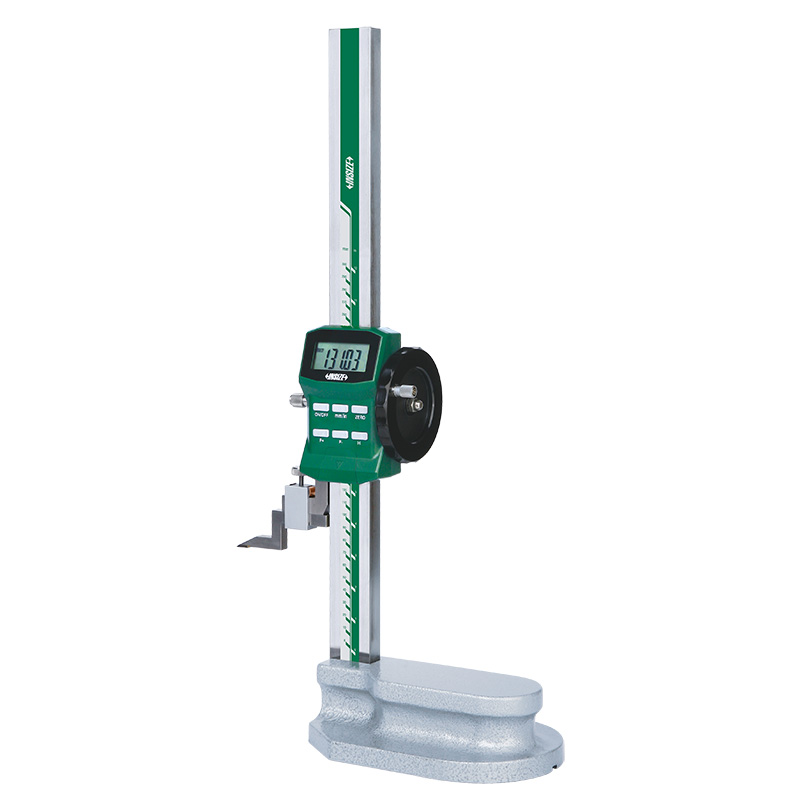

Digital Height Gauges With Driving Wheel
Code: 1156
Non waterproof
Buttons: on/off, zero, mm/inch, preset +, preset -, ABS/INC
Automatic power off, move the digital unit to turn on power
Carbide tipped scriber
Made of stainless steel (except the base)
Supplied with dust cover
With dial test indicator holder
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 1156-300 | 0-300mm/0-12" | ±0.03mm | 0.01mm/0.0005" |
| 1156-600 | 0-600mm/0-24" | ±0.05mm | 0.01mm/0.0005" |
| 1156-1000 | 0-1000mm/0-40" | ±0.07mm | 0.01mm/0.0005" |
