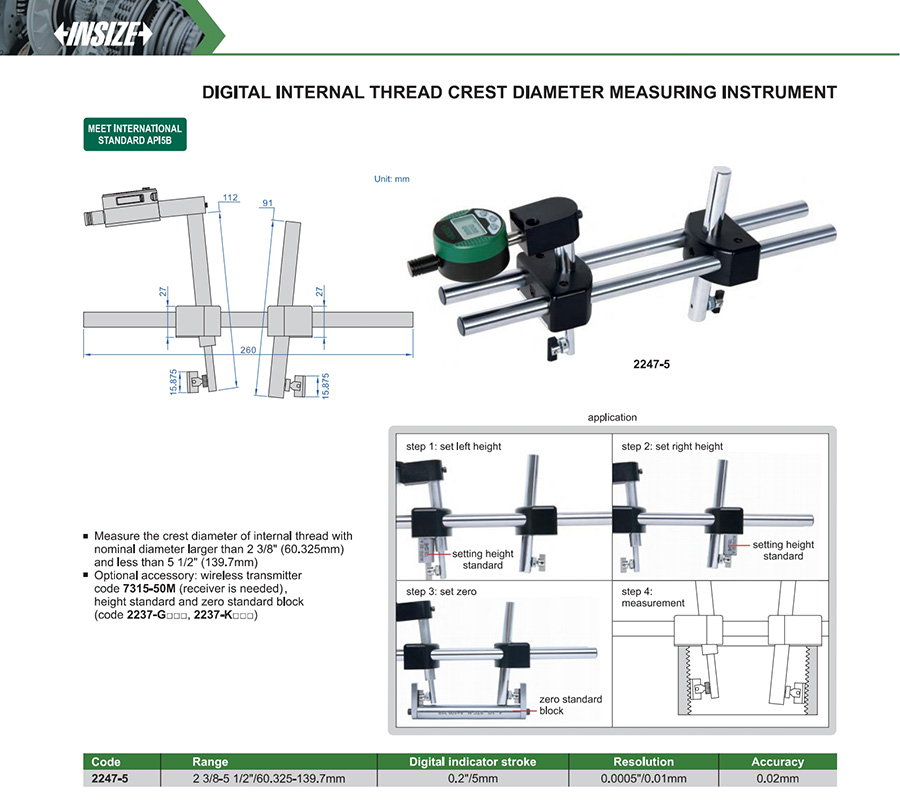

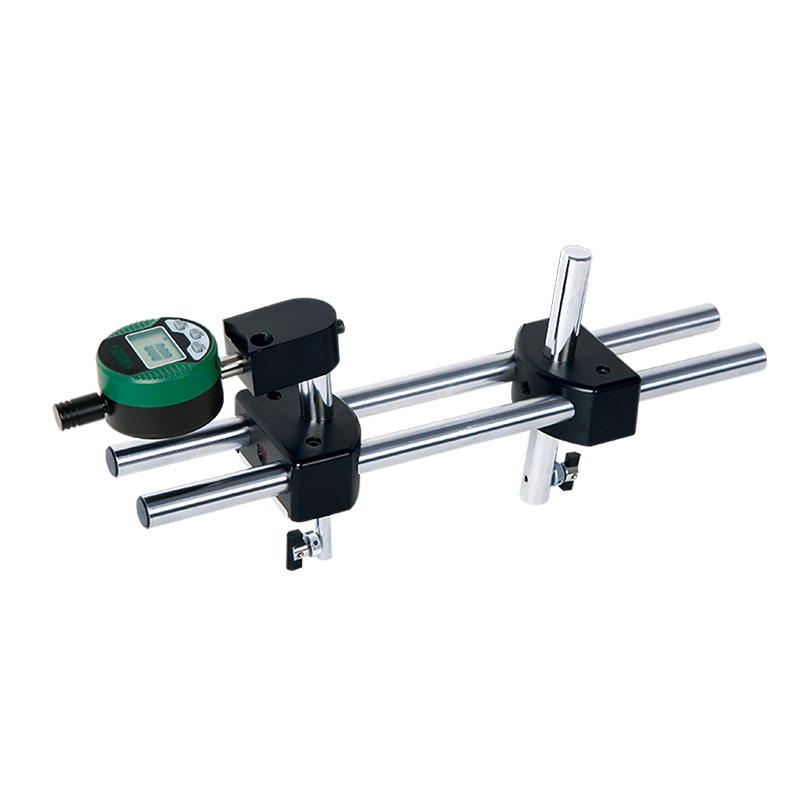

Digital Internal Thread Crest Diameter Measuring Instrument
Code: 2247-5
Measure the crest diameter of internal thread with nominal diameter larger than 2 3/8" (60.325mm) and less than 5 1/2" (139.7mm)
| Code | Range | Accuracy | Resolution | Inspection Elements |
|---|---|---|---|---|
| 2247-5 | 2 3/8-5 1/2"/60.325-139.7mm | 0.02mm | 0.0005"/0.01mm | crest diameter |
