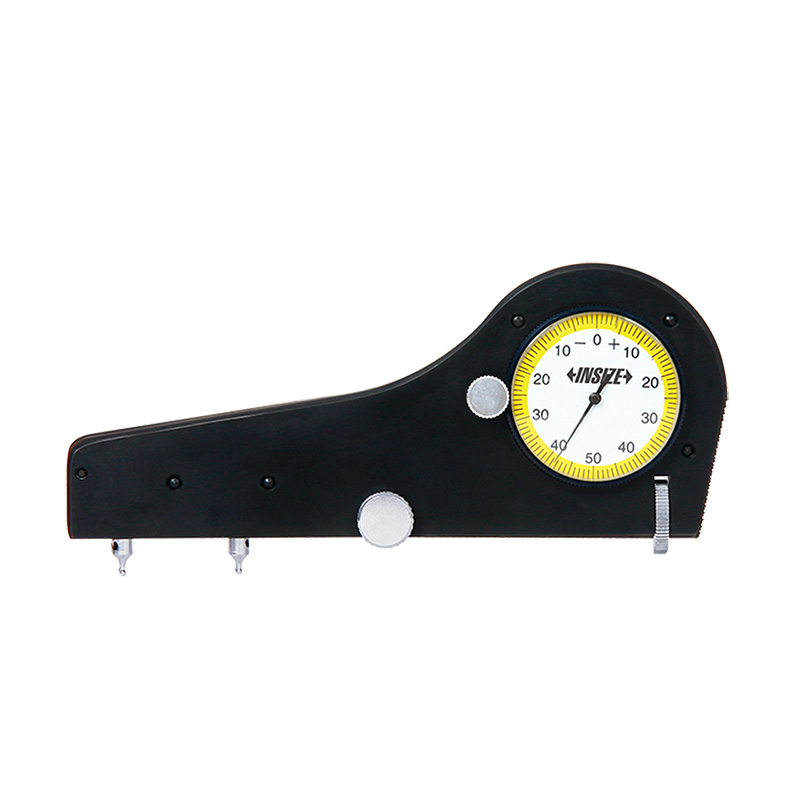

Internal Thread Pitch Measuring Instruments
Code: 2235

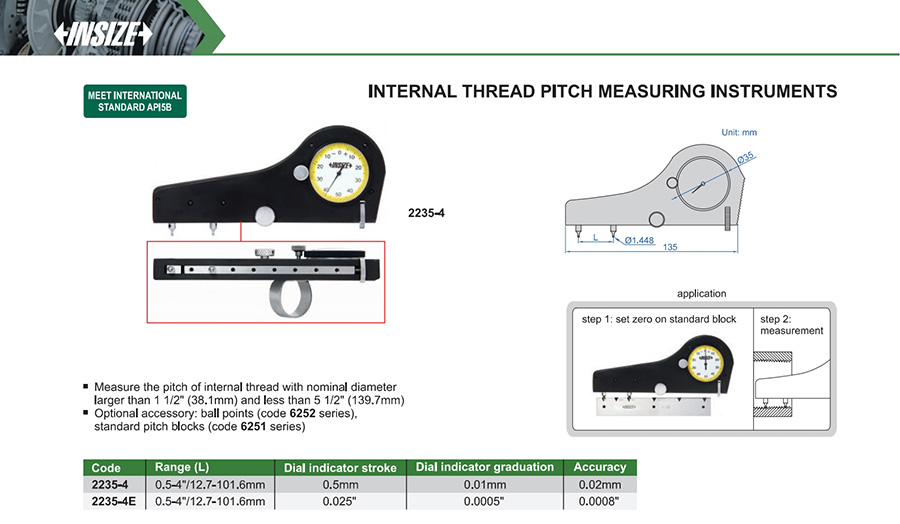

Measure the pitch of internal thread with nominal diameter larger than 1 1/2" (38.1mm) and less than 5 1/2" (139.7mm)
| Code | Range | Accuracy | Graduation | Inspection Elements |
|---|---|---|---|---|
| 2235-4 | 0.5-4"/12.7-101.6mm | 0.02mm | 0.01mm | lead |
| 2235-4E | 0.5-4"/12.7-101.6mm | 0.0008" | 0.0005" | lead |
