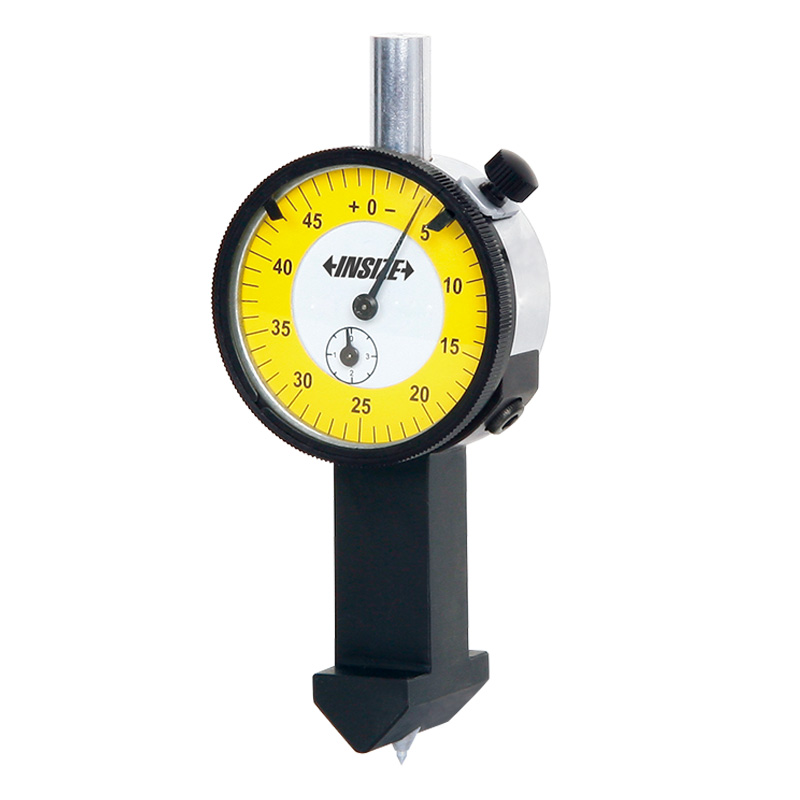

Thread Height Measuring Instruments
Code: 2232

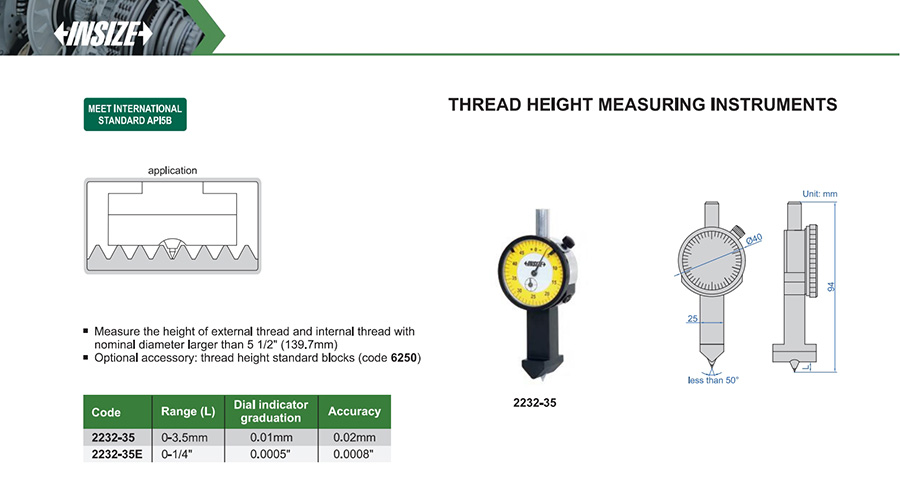

Measure the height of external thread and internal thread with nominal diameter larger than 5 1/2" (139.7mm)
Optional accessory: thread height standard blocks (code 6250)
| Code | Range | Accuracy | Graduation | Inspection Elements |
|---|---|---|---|---|
| 2232-35 | 0-3.5mm | 0.02mm | 0.01mm | thread height |
| 2232-35E | 0-1/4" | 0.0008" | 0.0005" | thread height |
