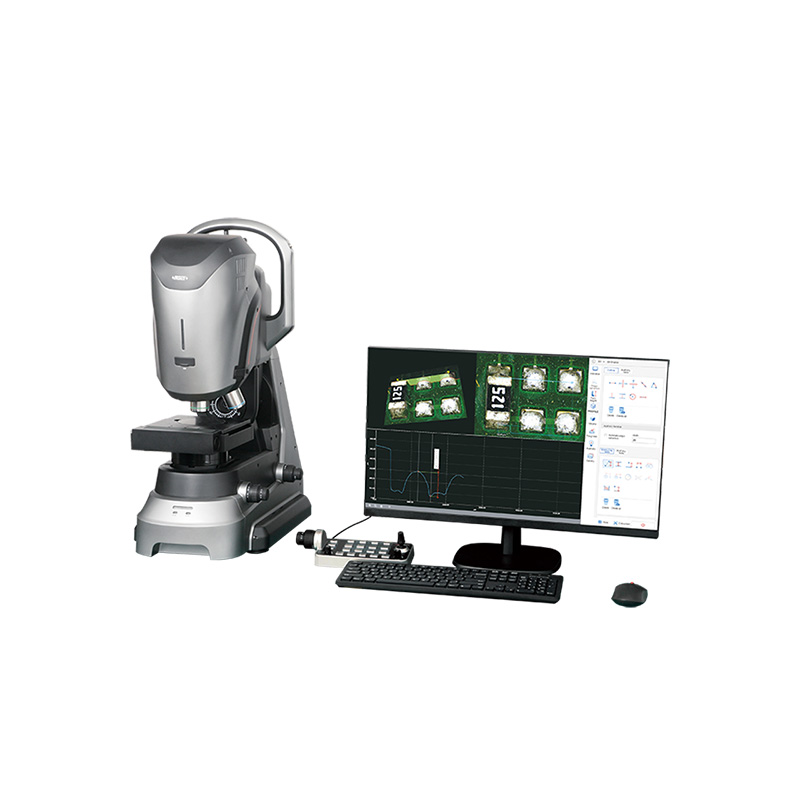

Large Depth Of Field 3D Measuring Microscope (Advanced Type)
Code: ISM-H5000
High definition telecentric imaging lens
Auto focus
4 motorized switching objectives
Split-screen display
Rotatable stage
Take picture and video
Multiple illumination options for different products and scenarios
Elimination of reflections and dark field halos, HDR, optical shadows
Automatic stitching for large field view and measurement after stitching
Measurements can be saved in reports and exported
| Code | Type | Magnification | View field | Pixel |
|---|---|---|---|---|
| ISM-H5000 | large depth of field 3D measuring microscopes | 30X~6000X | 50.60 38.00μm~9977.30 7483.00μm | 12.22M (4168×3062) |

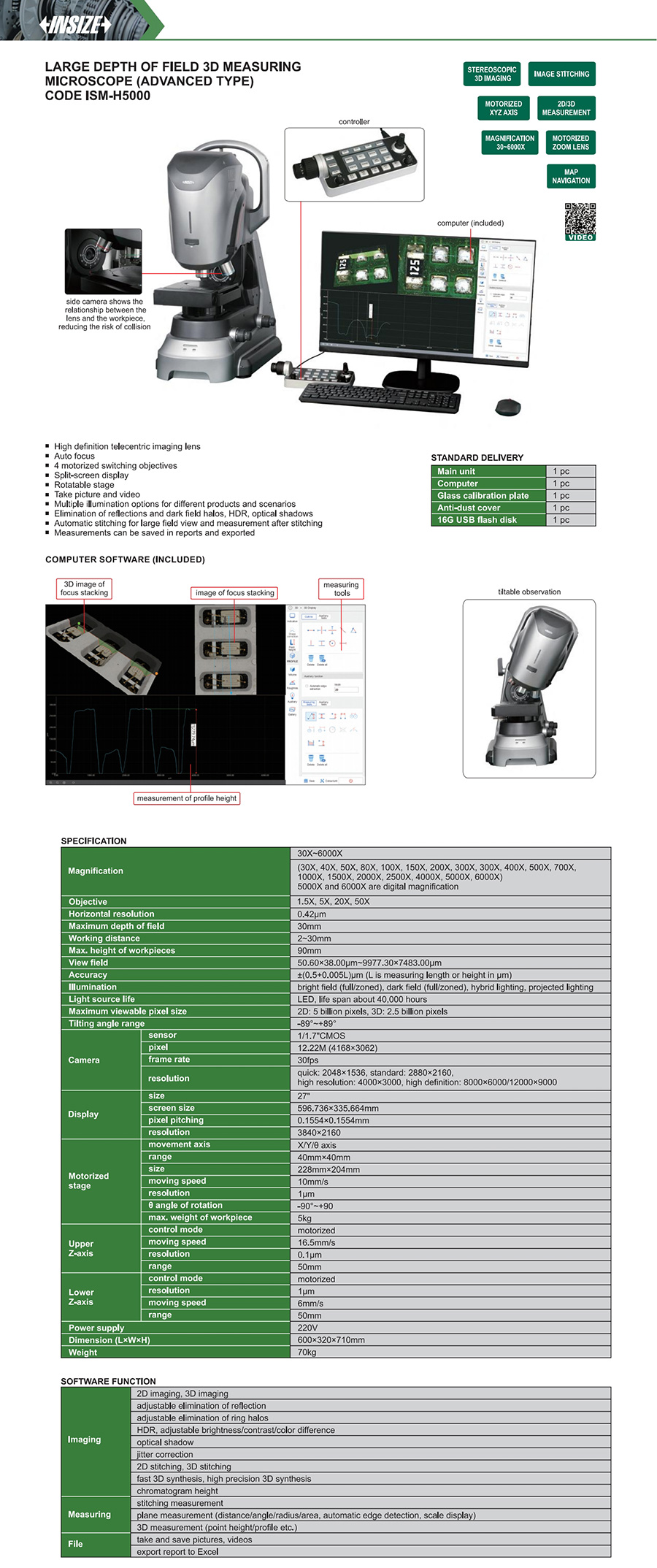

View the complete
