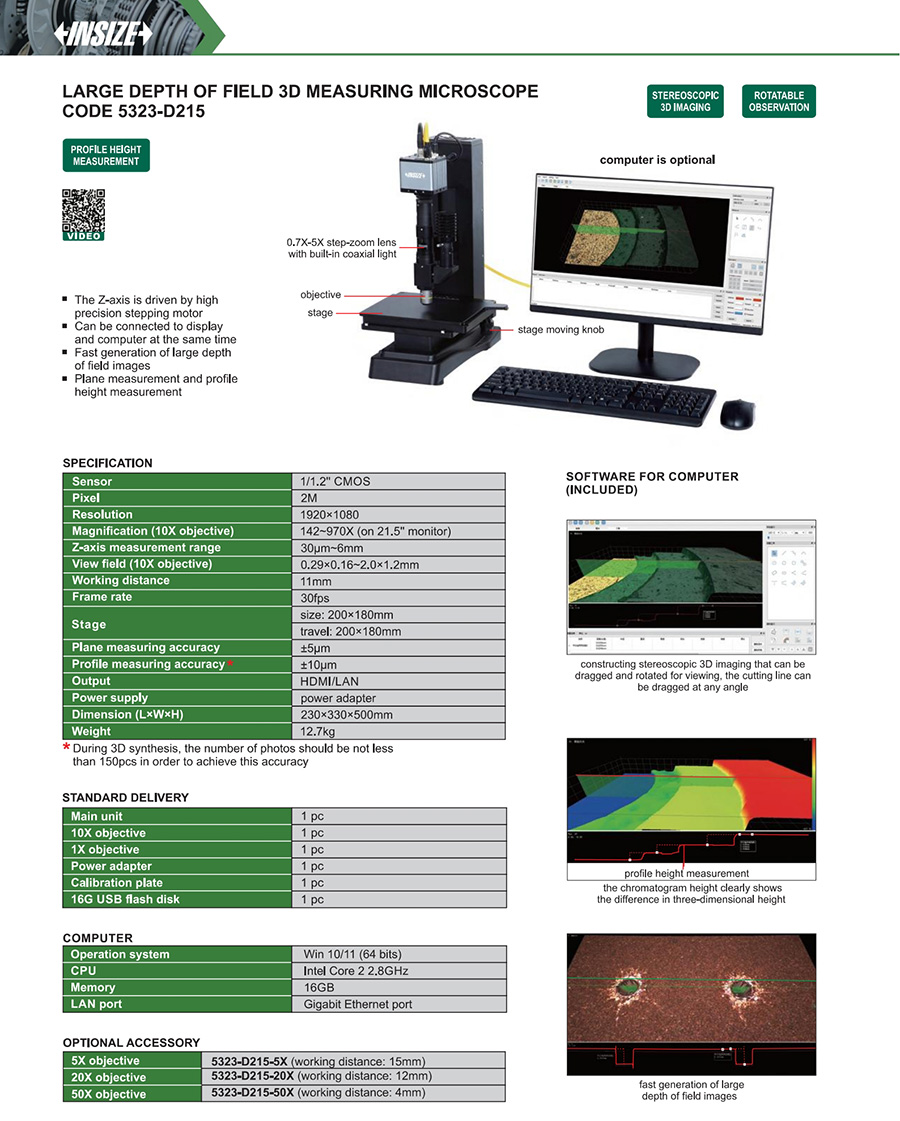

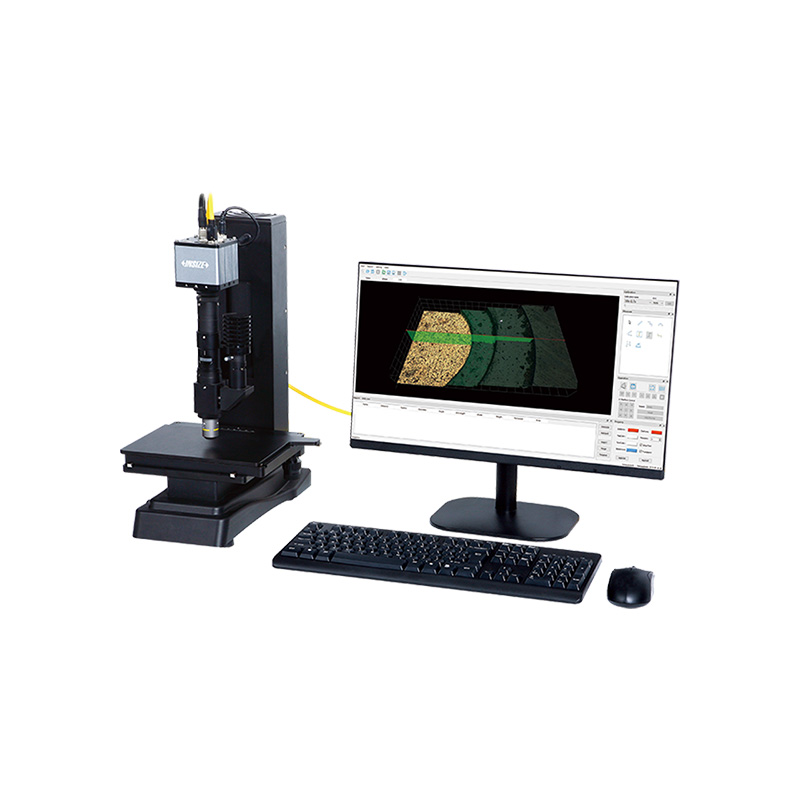

Large Depth Of Field 3D Measuring Microscope
Code: 5323-D215
The Z-axis is driven by high precision stepping motor
Can be connected to display and computer at the same time
Fast generation of large depth of field images
Plane measurement and profile height measurement
| Code | Type | Magnification | View field | Pixel |
|---|---|---|---|---|
| 5323-D215 | large depth of field 3D measuring microscopes | 142~970X | 0.29×0.16~2.0×1.2mm | 2M |
View the complete
product specifications
