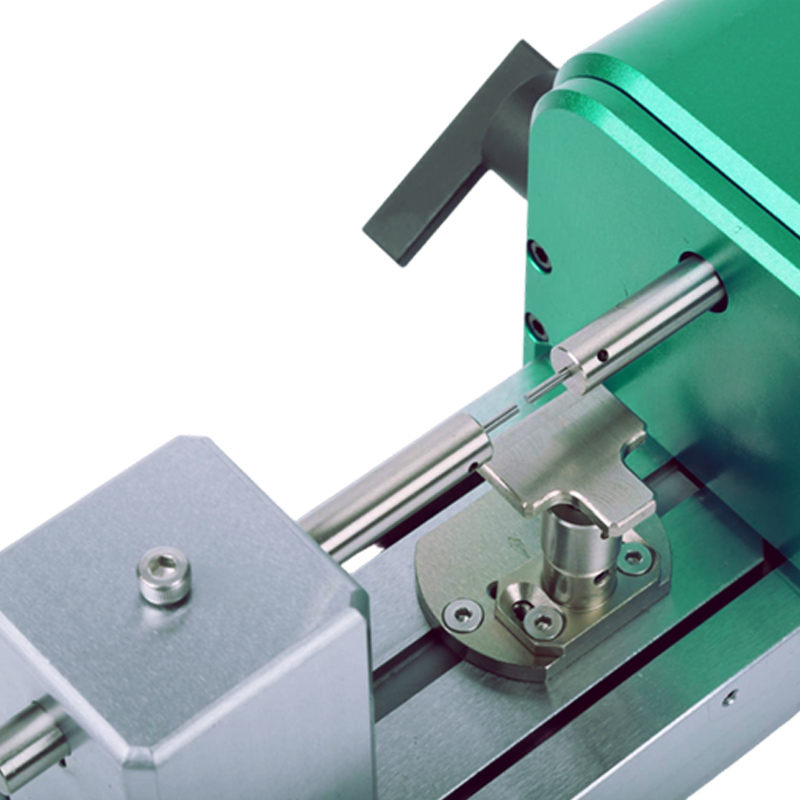

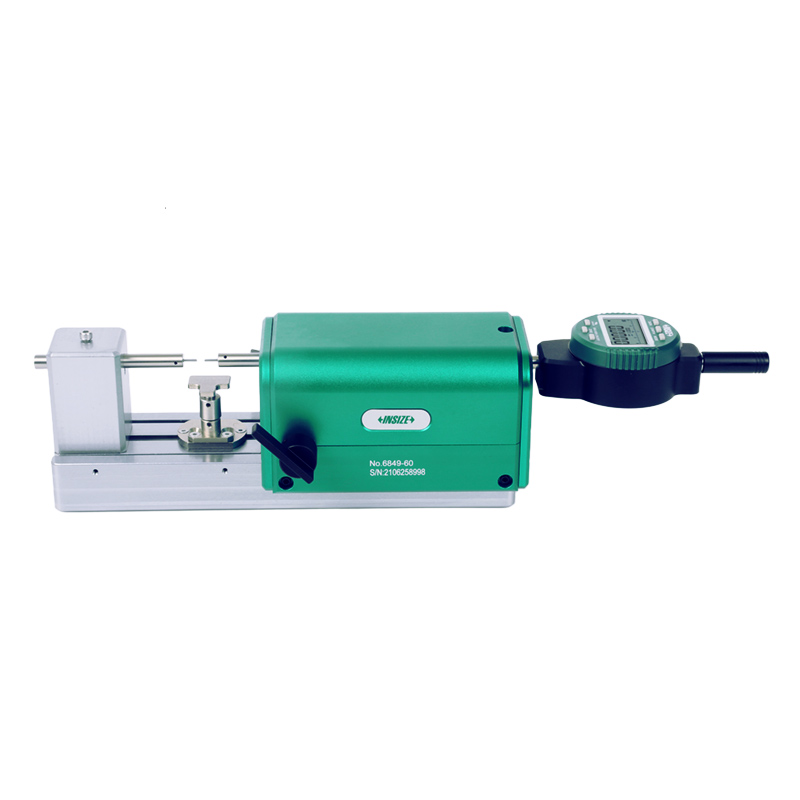

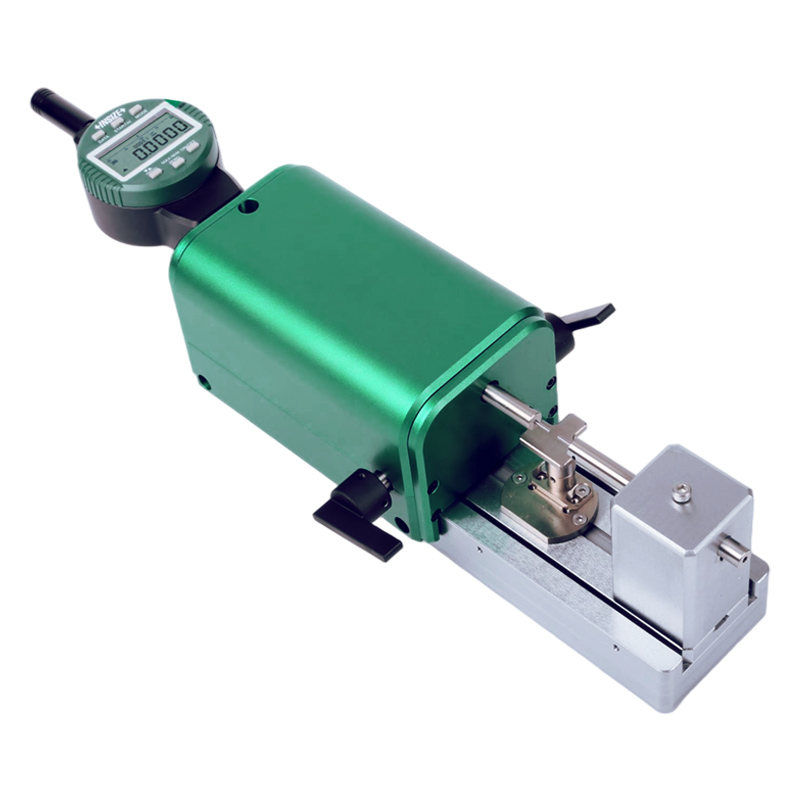

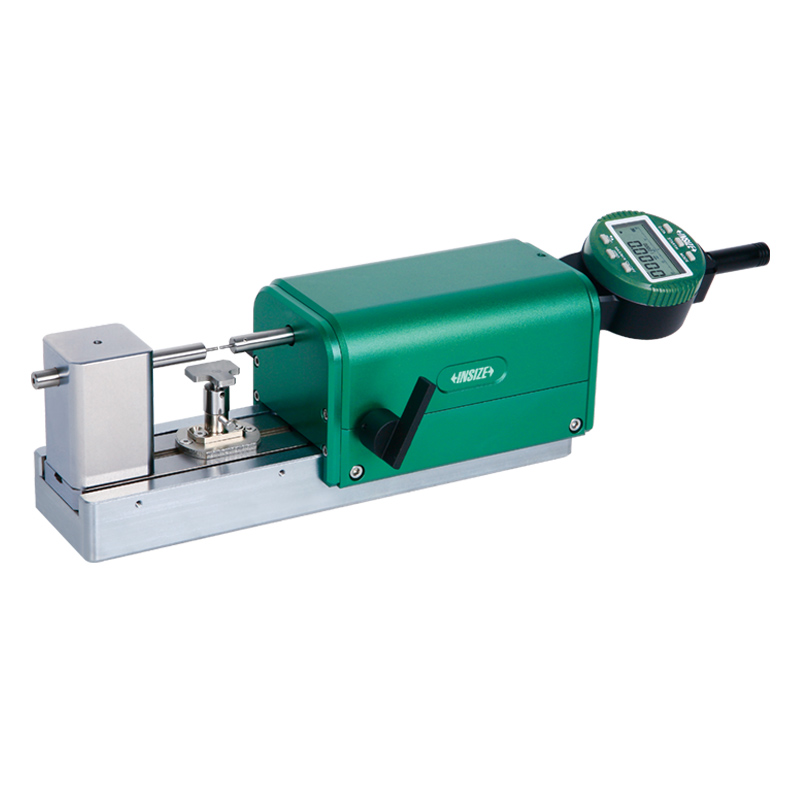

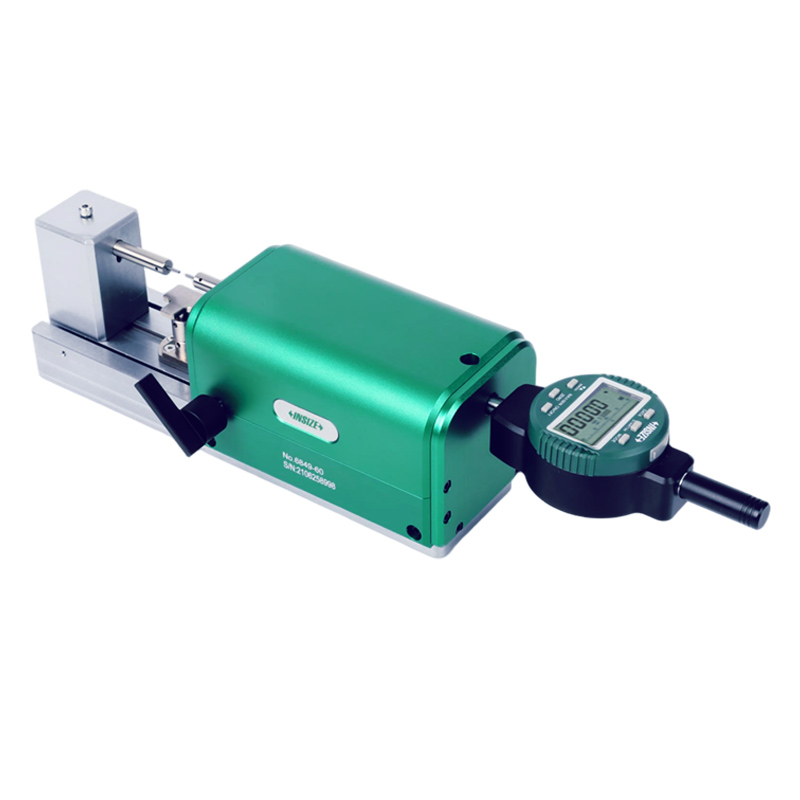

Horizontal Measuring Bench
Code: 6849-60
Quickly measure outside diameters
The platform can move horizontally and the height is adjustable
For left and right hand operation
Carbide probes
Digital indicator uses linear ball bearings and can be used ten million times
Digital indicator uses absolute encoder, the original data remains after power off
Digital indicator reading in digital and analog
| Code | Accuracy | Resolution | Repeatability | Range of external diameter |
|---|---|---|---|---|
| 6849-60 | 5μm | 0.0002mm/0.00001" | 0.4μm | 0-50mm |
