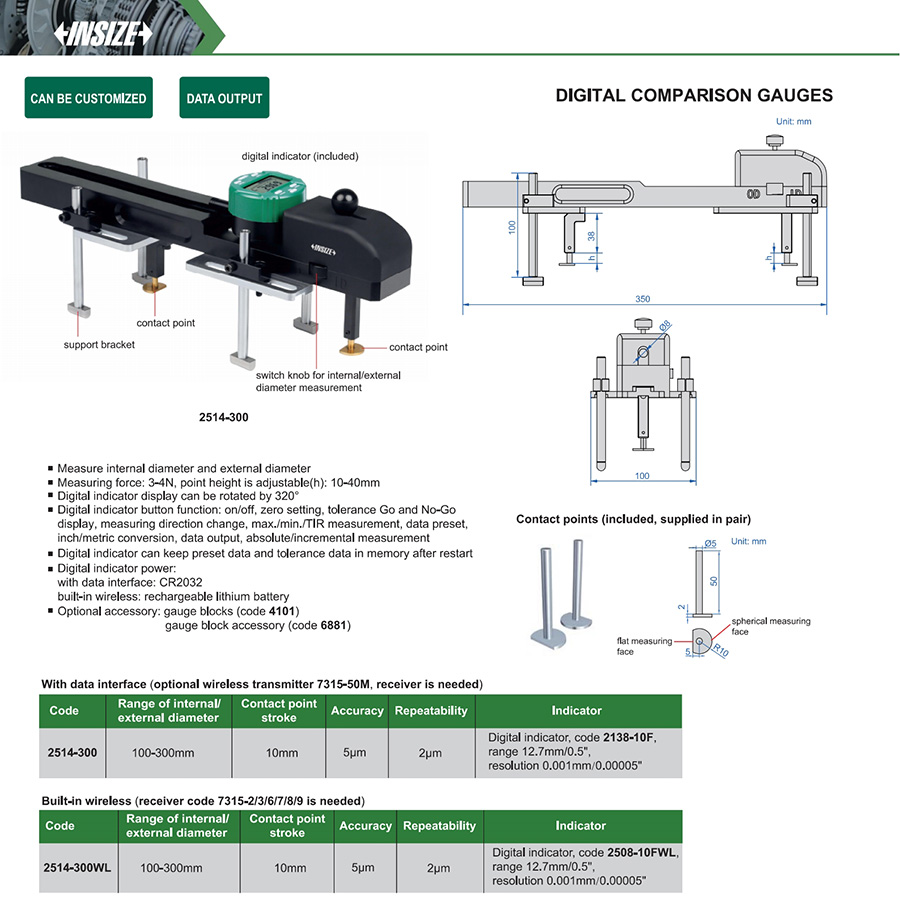

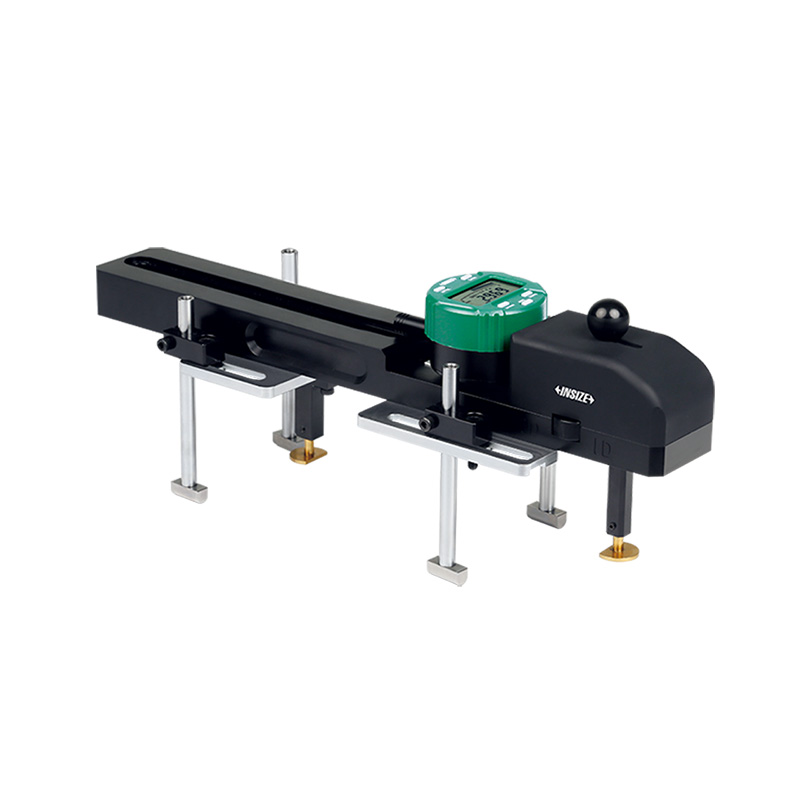

Digital Comparison Gauges
Code: 2514
Measure internal diameter and external diameter
Measuring force: 3-4N, point height is adjustable (h): 10-40mm
Digital indicator display can be rotated by 320°
Digital indicator button function: on/off, zero setting, tolerance Go and No-Go display, measuring direction change, max./min./TIR measurement, data preset,inch/metric conversion, data output, absolute/incremental measurement
Digital indicator can keep preset data and tolerance data in memory after restart
Digital indicator power: with data interface: CR2032 built-in wireless: rechargeable lithium battery
| Code | Accuracy | Repeatability | Range of external diameter | Range of internal diameter |
|---|---|---|---|---|
| 2514-300 | 5μm | 2μm | 100-300mm | 100-300mm |
| 2514-300WL | 5μm | 2μm | 100-300mm | 100-300mm |
