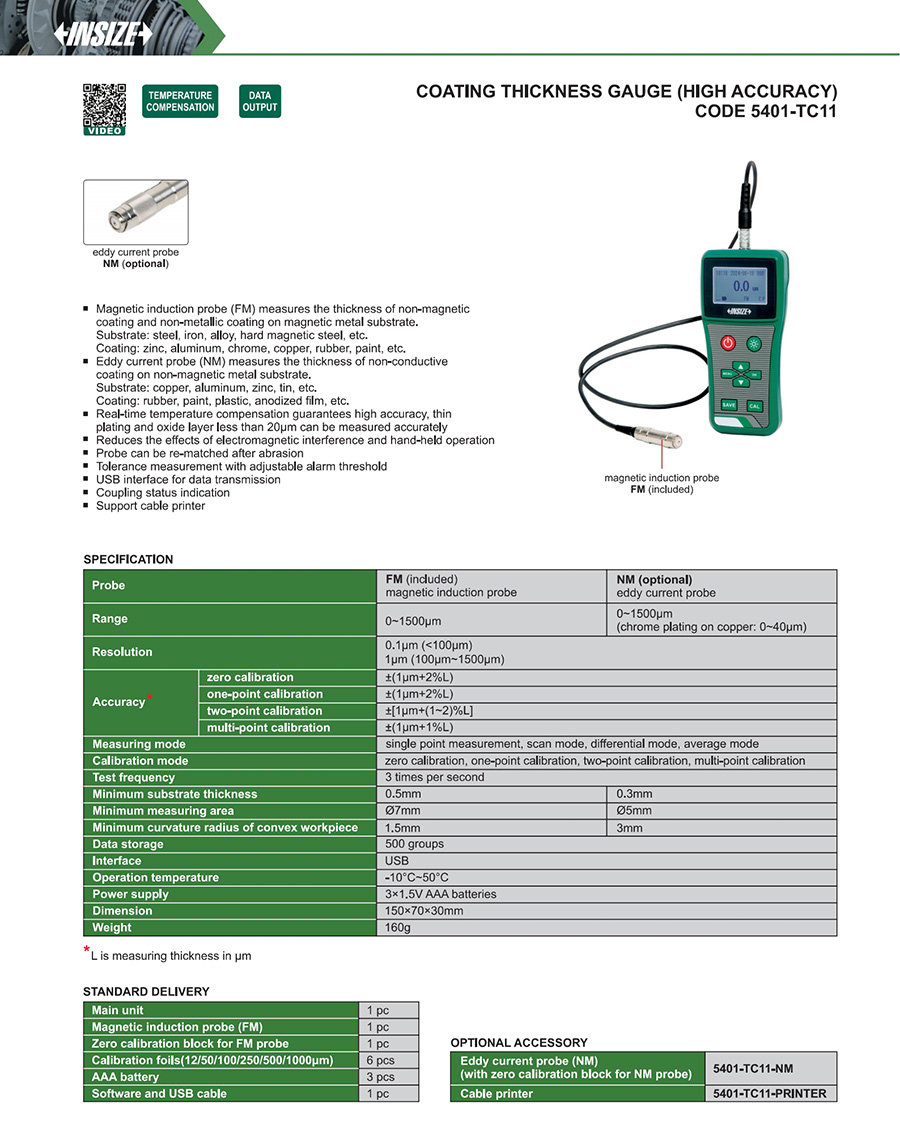

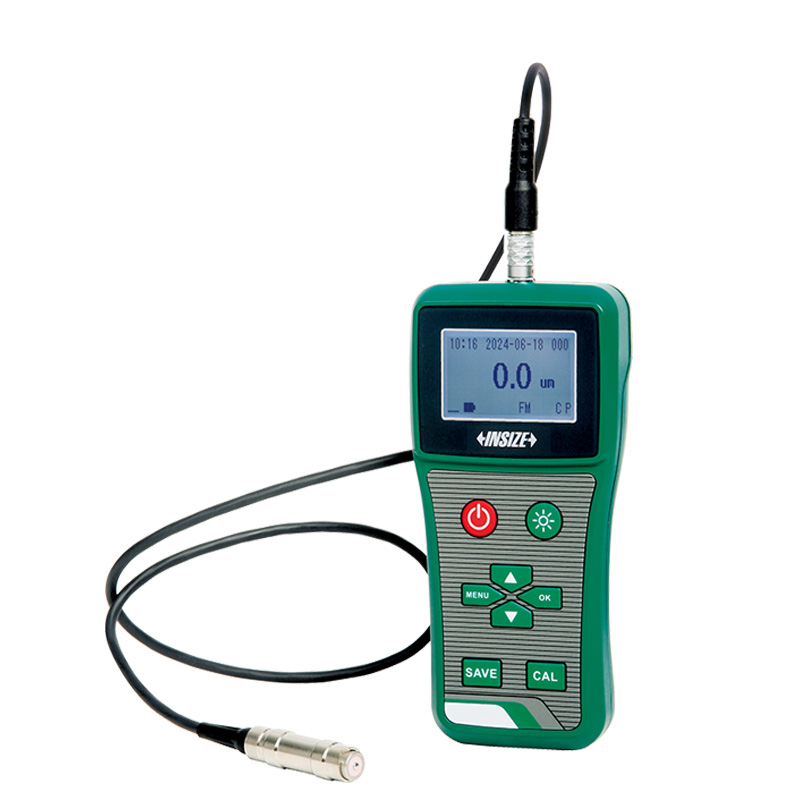

Coating Thickness Gauge (High Accuracy)
Code: 5401-TC11
Real-time temperature compensation guarantees high accuracy, thin plating and oxide layer less than 20μm can be measured accurately
Reduces the effects of electromagnetic interference and hand-held operation
Probe can be re-matched after abrasion
Tolerance measurement with adjustable alarm threshold
USB interface for data transmission
Coupling status indication
Support cable printer
| Code | Range | Accuracy | Resolution | Data transmission |
|---|---|---|---|---|
| 5401-TC11 | 0~1500μm: FM (included) magnetic induction probe | multi-point calibration ±(1μm+1%L) | 0.1μm (<100μm), 1μm (100μm~1500μm) | USB |
