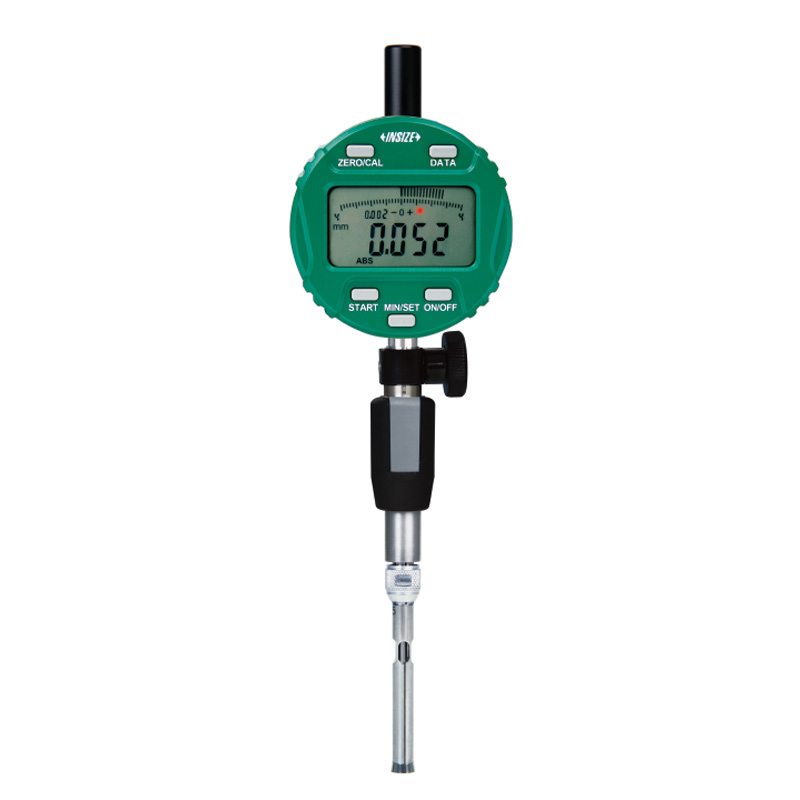

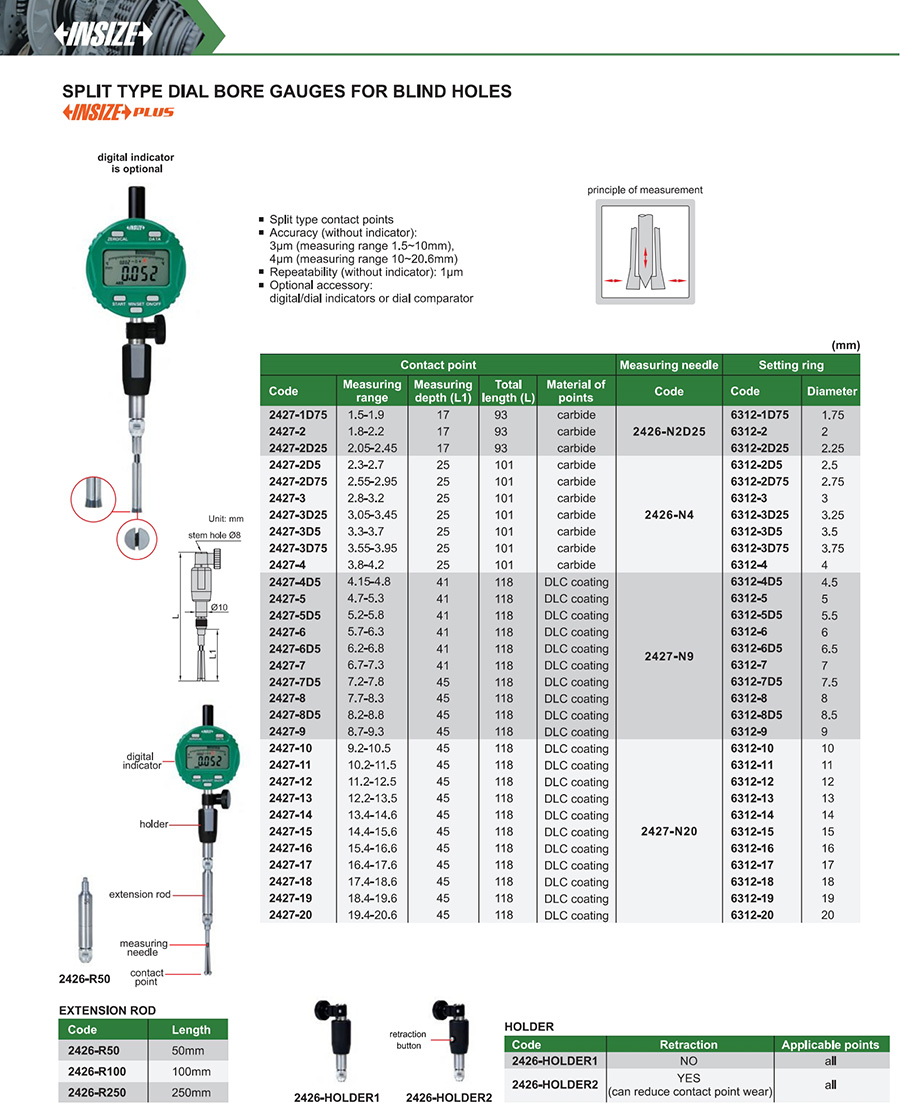

Split Type Dial Bore Gauges For Blind Holes
Code: 2427
Split type contact points
Optional accessory: digital/dial indicators or dial comparator
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2427-20 | 19.4-20.6mm | 4µm | 1µm |
| 2427-19 | 18.4-19.6mm | 4µm | 1µm |
| 2427-18 | 17.4-18.6mm | 4µm | 1µm |
| 2427-17 | 16.4-17.6mm | 4µm | 1µm |
| 2427-16 | 15.4-16.6mm | 4µm | 1µm |
| 2427-15 | 14.4-15.6mm | 4µm | 1µm |
| 2427-14 | 13.4-14.6mm | 4µm | 1µm |
| 2427-13 | 12.2-13.5mm | 4µm | 1µm |
| 2427-12 | 11.2-12.5mm | 4µm | 1µm |
| 2427-11 | 10.2-11.5mm | 4µm | 1µm |
| 2427-10 | 9.2-10.5mm | 3-4µm | 1µm |
| 2427-9 | 8.7-9.3mm | 3µm | 1µm |
| 2427-8D5 | 8.2-8.8mm | 3µm | 1µm |
| 2427-8 | 7.7-8.3mm | 3µm | 1µm |
| 2427-7D5 | 7.2-7.8mm | 3µm | 1µm |
| 2427-7 | 6.7-7.3mm | 3µm | 1µm |
| 2427-6D5 | 6.2-6.8mm | 3µm | 1µm |
| 2427-6 | 5.7-6.3mm | 3µm | 1µm |
| 2427-5D5 | 5.2-5.8mm | 3µm | 1µm |
| 2427-5 | 4.7-5.3mm | 3µm | 1µm |
| 2427-4D5 | 4.15-4.8mm | 3µm | 1µm |
| 2427-4 | 3.8-4.2mm | 3µm | 1µm |
| 2427-3D75 | 3.55-3.95mm | 3µm | 1µm |
| 2427-3D5 | 3.3-3.7mm | 3µm | 1µm |
| 2427-3D25 | 3.05-3.45mm | 3µm | 1µm |
| 2427-3 | 2.8-3.2mm | 3µm | 1µm |
| 2427-2D75 | 2.55-2.95mm | 3µm | 1µm |
| 2427-2D5 | 2.3-2.7mm | 3µm | 1µm |
| 2427-2D25 | 2.05-2.45mm | 3µm | 1µm |
| 2427-2 | 1.8-2.2mm | 3µm | 1µm |
| 2427-1D75 | 1.5-1.9mm | 3µm | 1µm |
