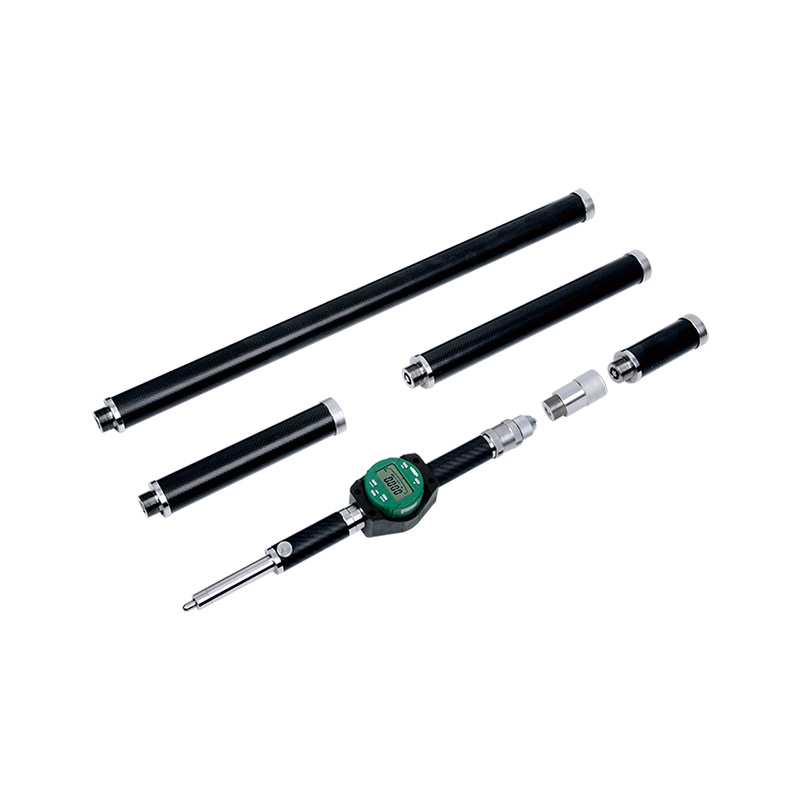

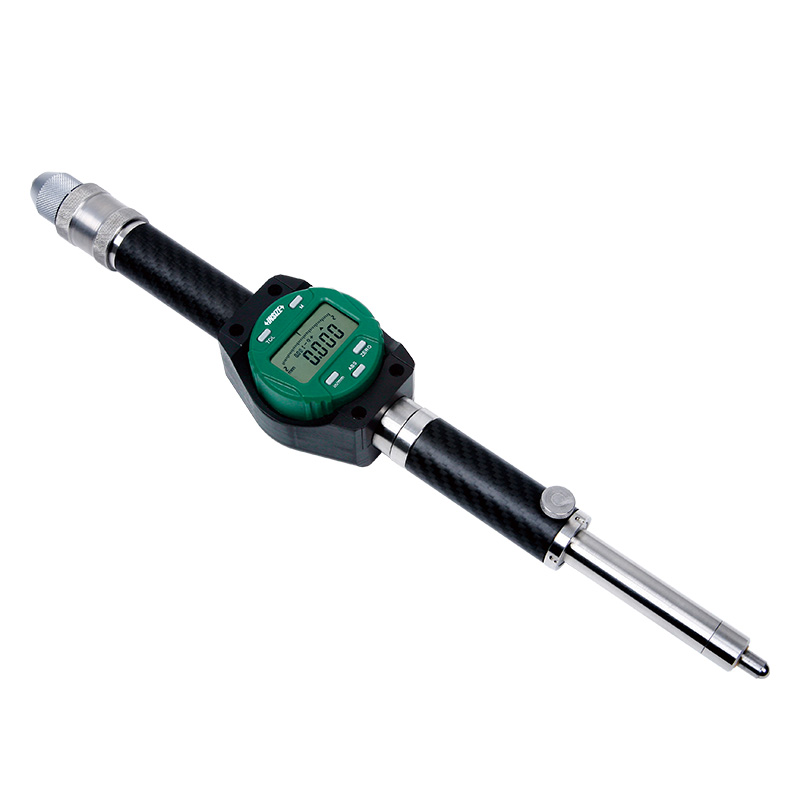

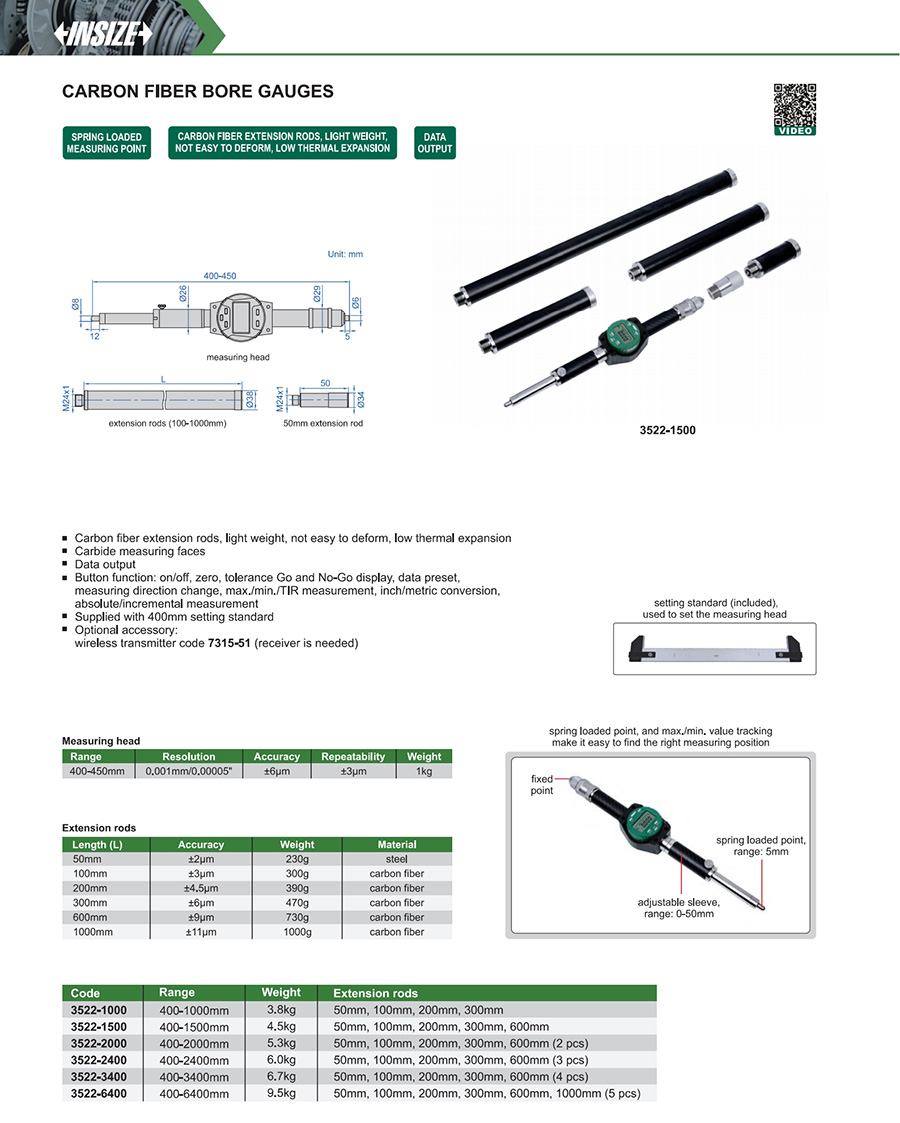

Carbon Fiber Bore Gauges
Code: 3522
Carbon fiber extension rods, light weight, not easy to deform, low thermal expansion
Carbide measuring faces
Data output
Button function: on/off, zero, tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric conversion, absolute/incremental measurement
Supplied with 400mm setting standard
| Code | Range |
|---|---|
| 3522-1000 | 400-1000mm |
| 3522-1500 | 400-1500mm |
| 3522-2000 | 400-2000mm |
| 3522-2400 | 400-2400mm |
| 3522-3400 | 400-3400mm |
| 3522-6400 | 400-6400mm |
