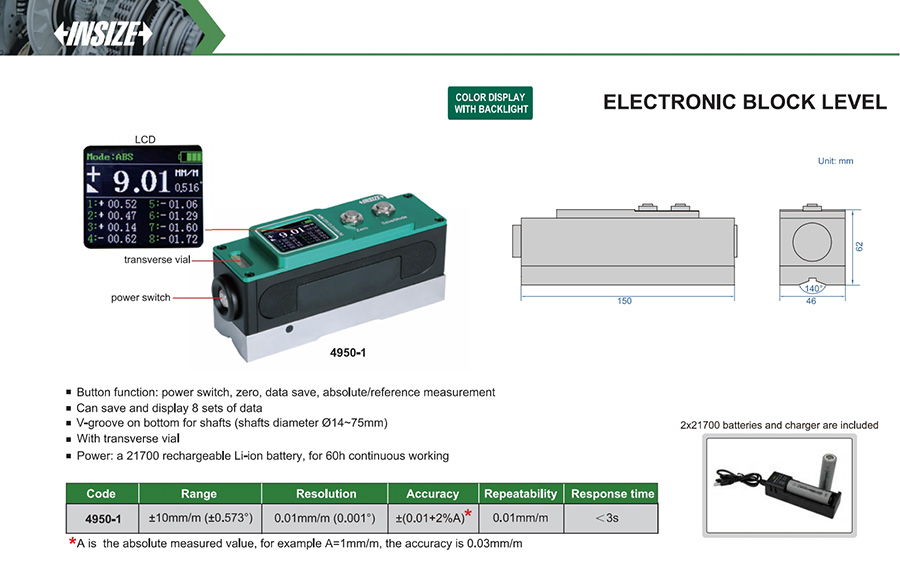

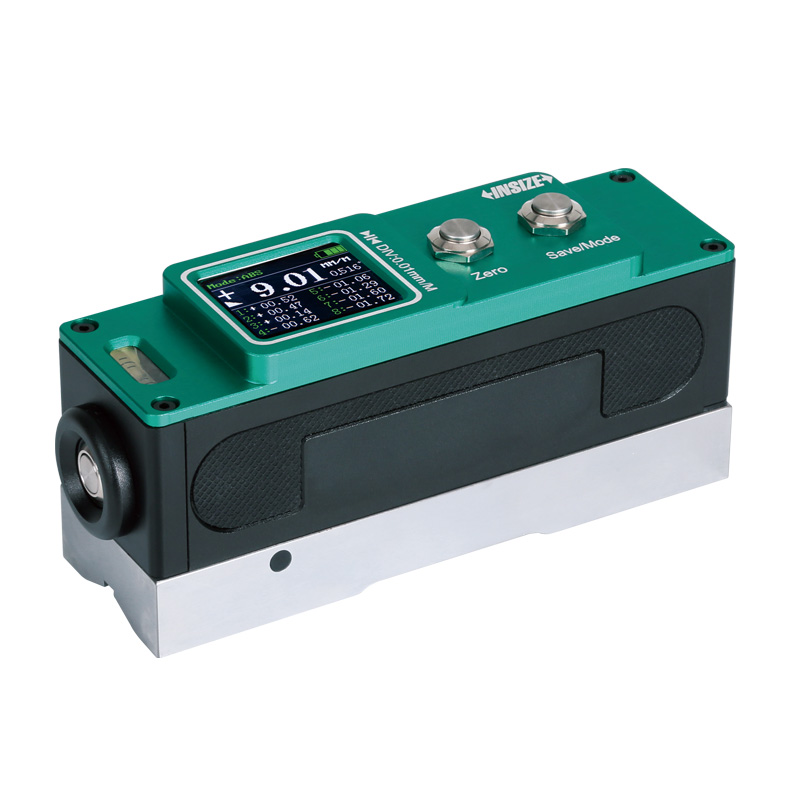

Electronic Block Level
Code: 4950-1
Button function: power switch, zero, data save, absolute/reference measurement
Can save and display 8 sets of data
V-groove on bottom for shafts (shafts diameter Ø14~75mm)
With transverse vial
Power: a 21700 rechargeable Li-ion battery, for 60h continuous working
| Code | Range | Accuracy | Resolution | Repeatability |
|---|---|---|---|---|
| 4950-1 | ±10mm/m (±0.573°) | ±(0.01+2%A) | 0.01mm/m (0.001°) | 0.01mm/m |
