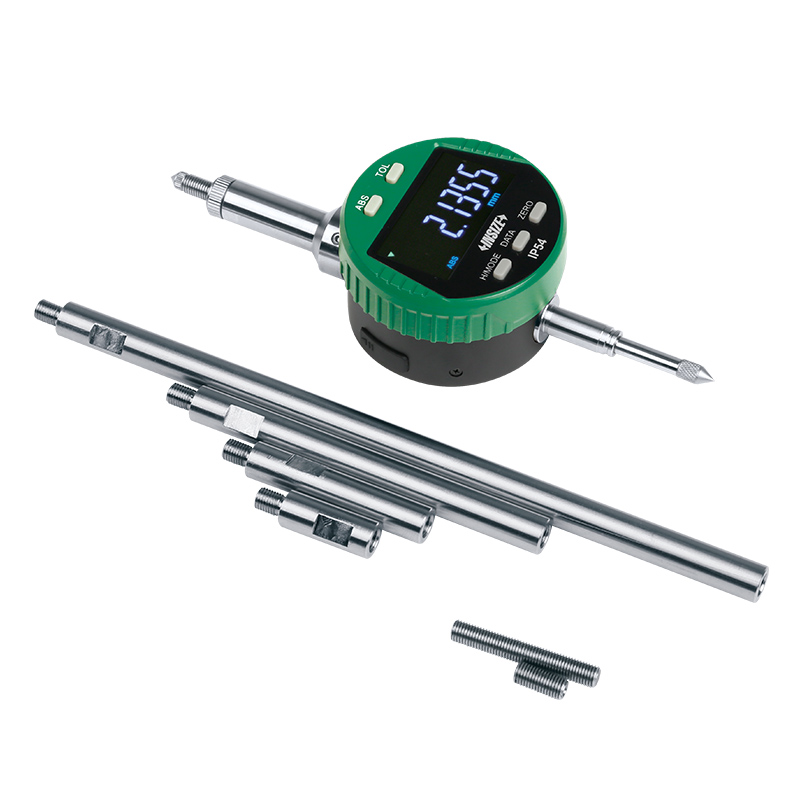

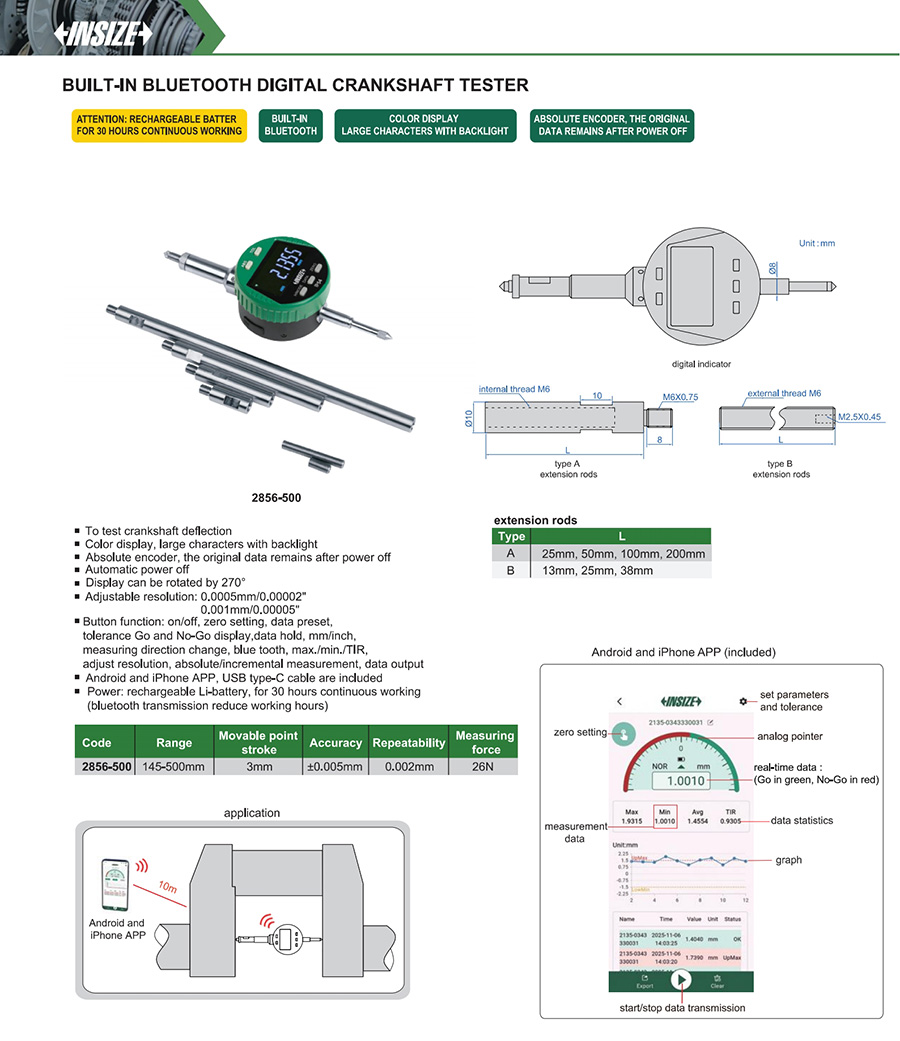

Built-In Bluetooth Digital Crankshaft Tester
Code: 2856-500
To test crankshaft deflection
Color display, large characters with backlight
Absolute encoder, the original data remains after power off
Automatic power off
Display can be rotated by 270°
Button function: on/off, zero setting, data preset, tolerance Go and No-Go display, data hold, mm/inch, measuring direction change, blue tooth, max./min./TIR, adjust resolution, absolute/incremental measurement, data output
Android and iPhone APP, USB type-C cable are included
Power: rechargeable Li-battery, for 30 hours continuous working (bluetooth transmission reduce working hours)
| Code | Range | Accuracy | Resolution | Repeatability |
|---|---|---|---|---|
| 2856-500 | 145-500mm | ±0.005mm | 0.001mm/0.00005”, 0.0005mm/0.00002" | 0.002mm |
